(35.353.AE[02]) - TRAVEL MOTOR & REDUCTION GEAR, LINES, RH

Запчасти Case CX210D NLC (35.353.AE[02]) - TRAVEL MOTOR & REDUCTION GEAR, LINES, RH (35) - HYDRAULIC SYSTEMS

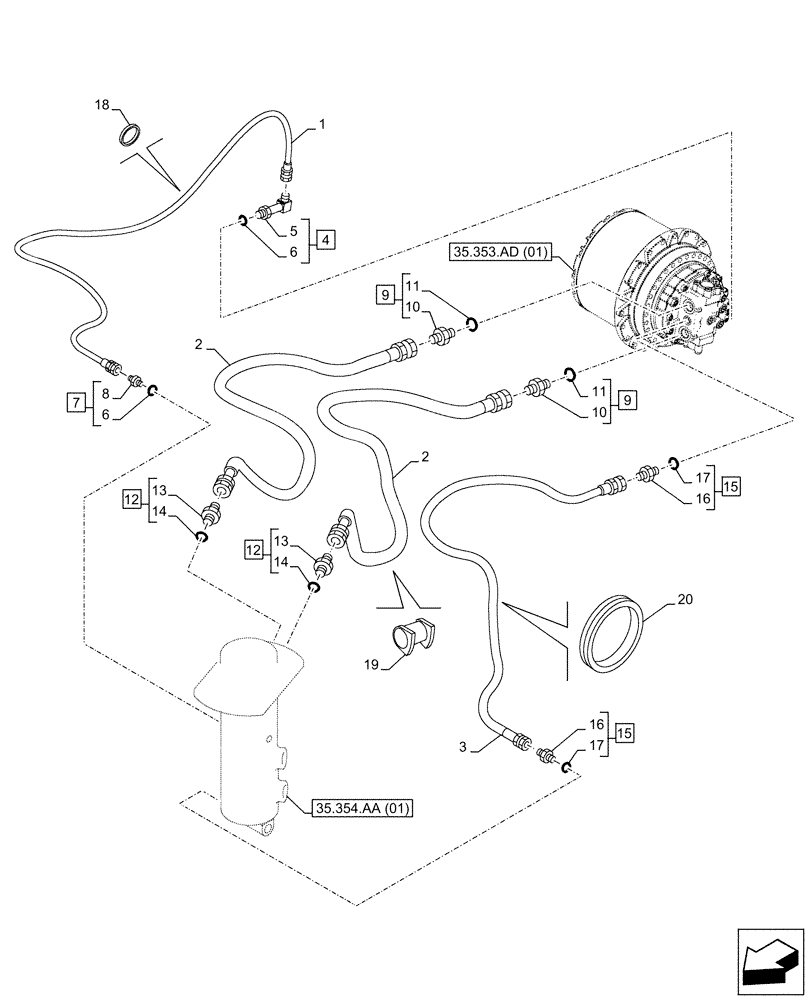

Схема запчастей Case CX210D NLC - (35.353.AE[02]) - TRAVEL MOTOR & REDUCTION GEAR, LINES, RH (35) - HYDRAULIC SYSTEMS
35.353.ad (01)
15
12
18
17
17
7
10
2
13
20
10
14
12
9
11
16
14
16
3
13
11
15
5
8
9
4
2
1
19
6
6
35.354.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152270A1

HOSE,6.3mm ID x 2600mm L

04mm ID x 2600mm, From Travel Motor to Hydraulic Swivel

1шт.

2

KRA16010

HYDRAULIC HOSE

From Travel Motor to Hydraulic Swivel

2шт.

3

KNJ2848

HYDRAULIC HOSE,12.70 mm ID x 2100.00 mm

12mm ID x 2100mm, From Travel Motor to Hydraulic Swivel

1шт.

4

KHJ1178

ELBOW

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 4

1шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

153001A1

ADAPTER

ASSY, Incl 10, 11

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

2шт.

11

150542A1

O-RING

2шт.

12

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, Incl 13, 14

2шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

2шт.

14

152211A1

O-RING

2шт.

15

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 16, 17

2шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

2шт.

17

150539A1

O-RING

2шт.

18

150071A1

MOUNTING CLIP

380mm

1шт.

19

KHJ2679

HOSE CLAMP

1шт.

20

159398A1

RUBBER BLOCK

32mm x 430mm

1шт.
