(35.357.AR[02]) - PILOT VALVE, CONTROL, VALVE, LINE

Запчасти Case CX210D NLC (35.357.AR[02]) - PILOT VALVE, CONTROL, VALVE, LINE (35) - HYDRAULIC SYSTEMS

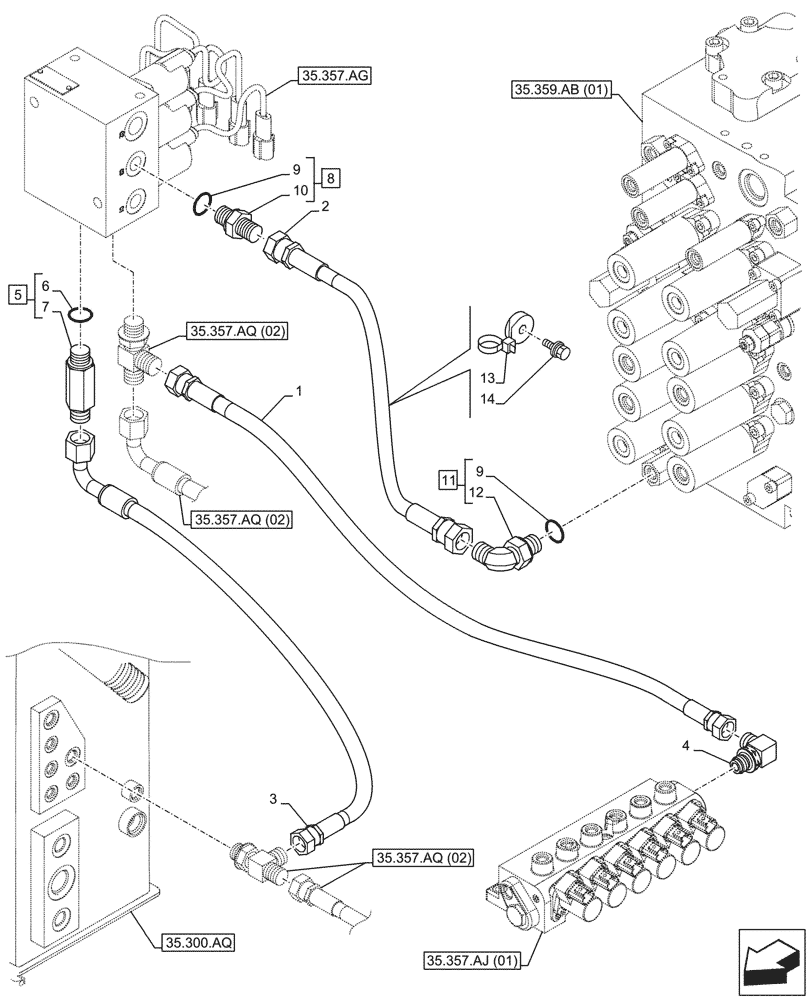

Схема запчастей Case CX210D NLC - (35.357.AR[02]) - PILOT VALVE, CONTROL, VALVE, LINE (35) - HYDRAULIC SYSTEMS
35.357.aj (01)
12
9
14
1
7
10
2
4
11
3
13
5
9
8
35.300.aq
35.359.ab (01)
6
35.357.aq (02)
35.357.aq (02)
35.357.aq (02)
35.357.ag
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ24350

HOSE

9mm ID x 1700mm, from Solenoid Valve to Solenoid Valve

1шт.

2

KHJ2056

HYDRAULIC HOSE

6mm ID x 1300mm, from Solenoid Valve to Control Valve

1шт.

3

KHJ10040

HOSE ASSY.

9mm ID x 1800mm, from Solenoid Valve to Sump Tank

1шт.

4

KHJ29610

ELBOW

G3/8" x G3/8"

1шт.

5

KAJ2351

FITTING

ASSY, G3/8" x G3/8", Incl 6, 7

1шт.

6

150031A1

O-RING,10mm ID x 24mm OD

1шт.

7

NSS

NOT SOLD SEPARAT

Stud, Incl in 5

1шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 9(Qty 1), 10

1шт.

9

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

11

KHJ28580

ELBOW

ASSY, Incl 9(Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

13

KHR2584

CLAMP

M8

1шт.

14

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.
