(35.359.AY[04]) - VAR - 461869, 461870 - RELIEF VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D NLC (35.359.AY[04]) - VAR - 461869, 461870 - RELIEF VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

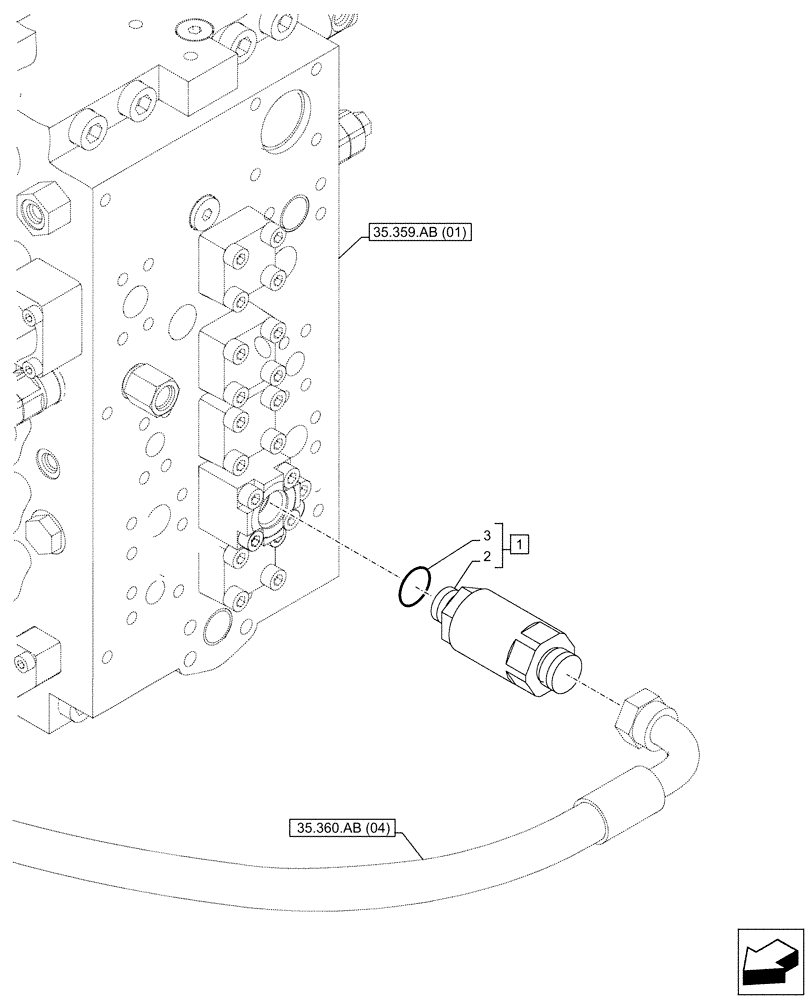

Схема запчастей Case CX210D NLC - (35.359.AY[04]) - VAR - 461869, 461870 - RELIEF VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
3
1
2
35.360.ab (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ10480

VALVE SECTION

ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

150542A1

O-RING

1шт.
