(35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D NLC (35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

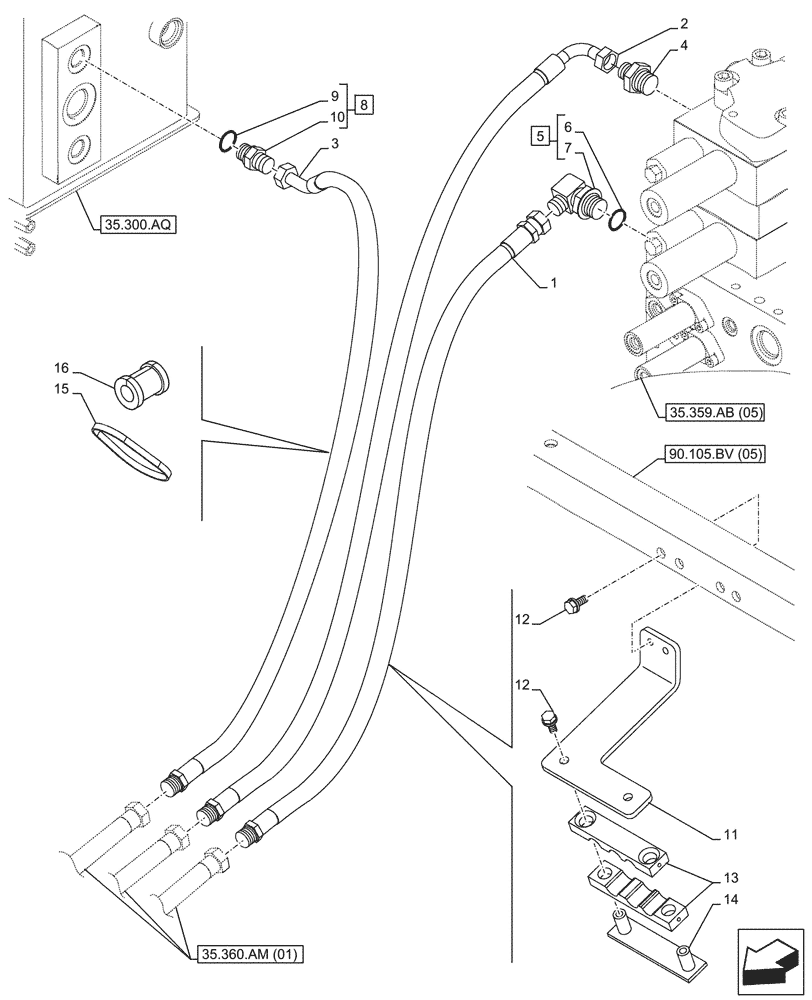

Схема запчастей Case CX210D NLC - (35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
90.105.bv (05)
16
4
1
14
3
15
2
7
13
5
9
10
12
11
12
6
8
35.300.aq
35.359.ab (05)
35.360.am (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ12420

HYDRAULIC HOSE,12.70 mm ID x 1430.00 mm

12mm ID x 1430mm, from Control Valve to Stop Valve

1шт.

2

KBJ12440

HYDRAULIC HOSE

12mm ID x 1560mm, from Control Valve to Stop Valve

1шт.

3

KRJ37650

HYDRAULIC HOSE

12mm ID x 1520mm, from Sump Tank to Stop Valve

1шт.

4

168988A1

ADAPTER

G1/2" x G3/4"

1шт.

5

157936A1

ELBOW

ASSY, G1/4" x G1/2", Incl 6, 7

1шт.

6

150542A1

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 5

1шт.

8

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 9, 10

1шт.

9

150539A1

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

11

KBJ19730

BRACKET

1шт.

12

166052A1

BOLT

M10 x 25mm

4шт.

13

KRJ11580

HOSE CLIP

2шт.

14

KRJ11590

SUPPORT

1шт.

15

150496A1

MOUNTING CLIP

250mm

4шт.

16

KHJ2021

HOSE CLAMP

1шт.
