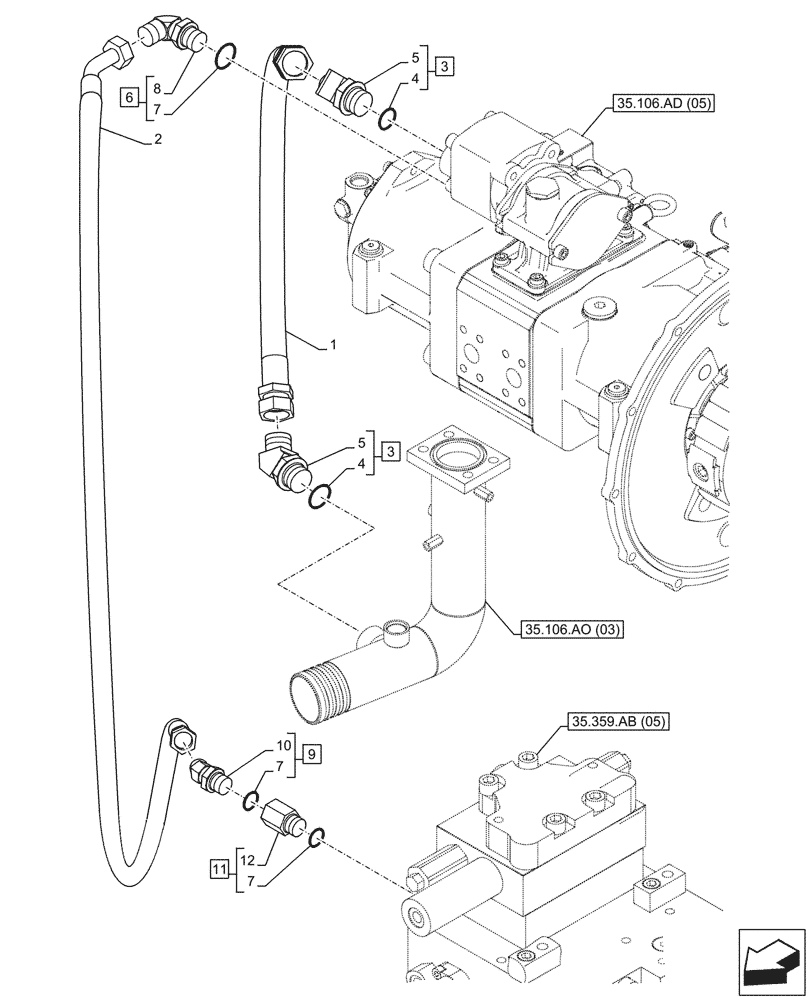

Запчасти Case CX210D NLC (35.360.AF[02]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KBJ22210

HYDRAULIC HOSE

25mm ID x 740mm, from Pump Hydraulic to Control Valve

1шт.

2

KRJ37640

HYDRAULIC HOSE

12mm ID x 1180mm, from Pump Hydraulic to Control Valve, Serial Range: -C0480

1шт.

2

KRJ40700

HYDRAULIC HOSE

from Pump Hydraulic to Control Valve, Start Serial: D0480

1шт.

3

157587A1

ELBOW

ASSY, G1" x G1", Incl 4, 5

2шт.

4

152211A1

O-RING

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

2шт.

6

KHJ28600

ELBOW

ASSY, G1/2" x G1/2", Incl 7(Qty 1), 8

1шт.

7

150539A1

O-RING

3шт.

8

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

9

KHJ28650

ELBOW

ASSY, G1/2" x G1/2", Incl 7(Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 9

1шт.

11

KHJ1713

STUD

ASSY, G1/2" x G1/2", Incl 7(Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Stud, Incl in 11

1шт.
