(35.360.AJ[05]) - VAR - 461869, 461870 - HAMMER CIRCUIT, SOLENOID VALVE, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D NLC (35.360.AJ[05]) - VAR - 461869, 461870 - HAMMER CIRCUIT, SOLENOID VALVE, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

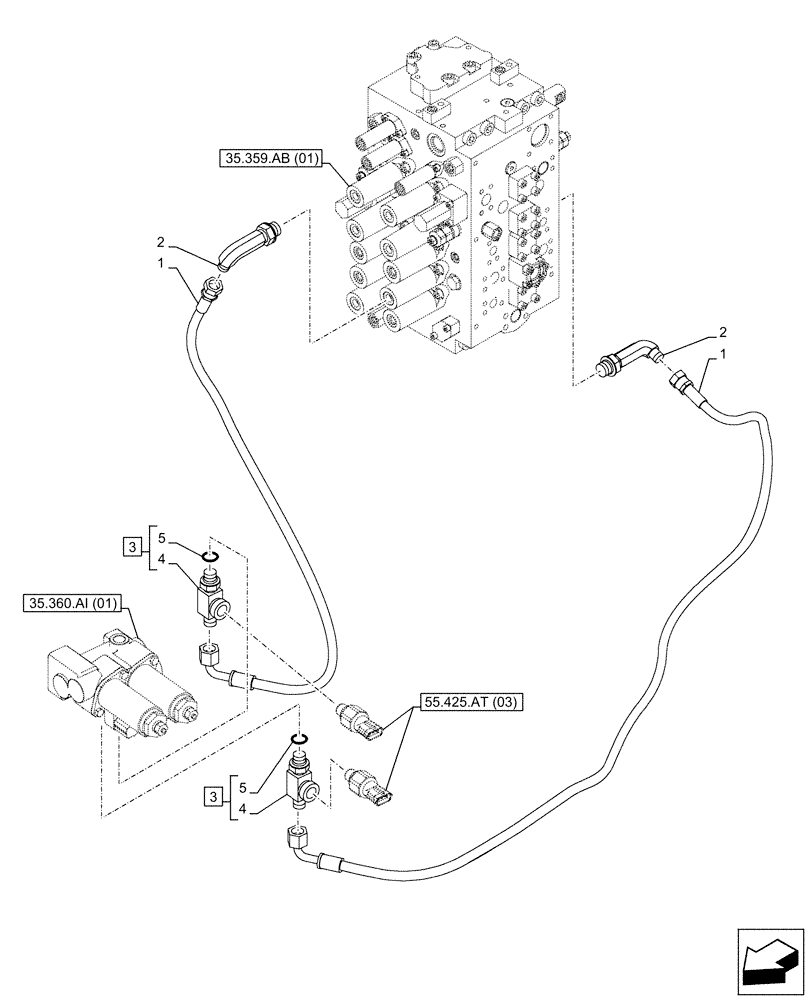

Схема запчастей Case CX210D NLC - (35.360.AJ[05]) - VAR - 461869, 461870 - HAMMER CIRCUIT, SOLENOID VALVE, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
4
1
5
5
1
3
4
2
3
2
35.360.ai (01)
55.425.at (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

From Main Control Valve to Solenoid Valve

2шт.

2

KHJ28880

ELBOW

2шт.

3

167666A1

FITTING

ASSY, Incl 4 - 5

2шт.

4

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 3

2шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.
