(35.734.AH[03]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, ARM (L=2.9M)

Запчасти Case CX210D NLC (35.734.AH[03]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, ARM (L=2.9M) (35) - HYDRAULIC SYSTEMS

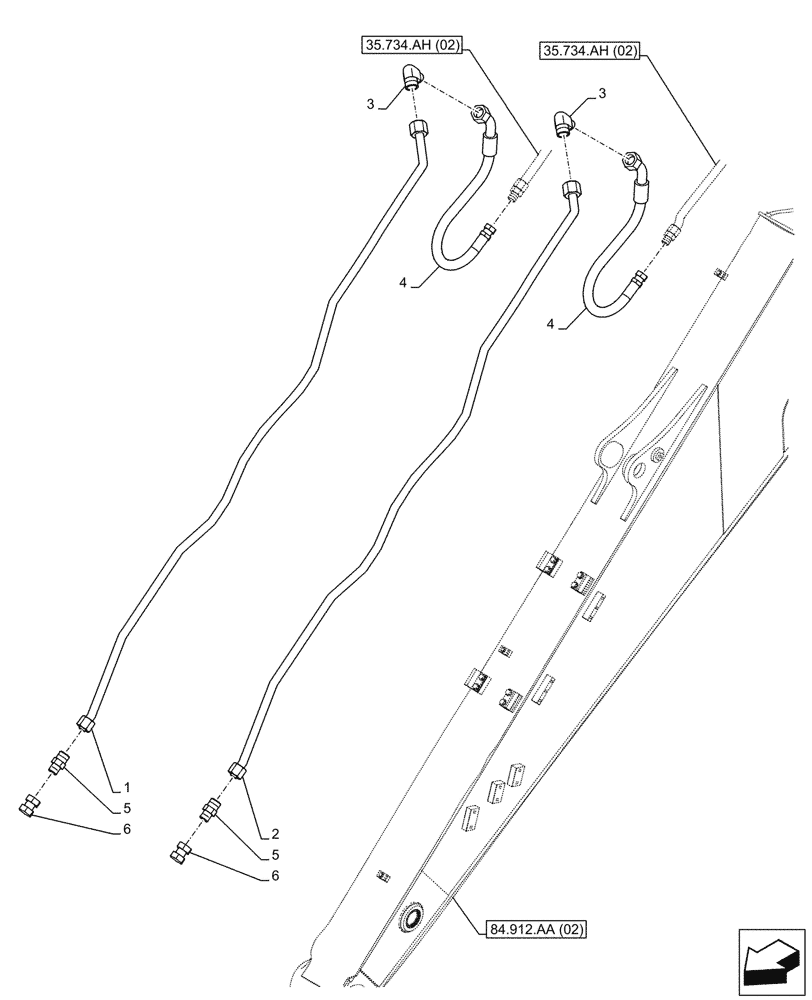

Схема запчастей Case CX210D NLC - (35.734.AH[03]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, ARM (L=2.9M) (35) - HYDRAULIC SYSTEMS
35.734.ah (02)
2
5
6
84.912.aa (02)
3
35.734.ah (02)
6
3
4
1
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV44310

PIPE

RH

1шт.

2

KRV44300

PIPE

LH

1шт.

3

KMJ0766

ELBOW

2шт.

4

KHV13830

HYDRAULIC HOSE

6mm ID x 840mm, from Safety Valve

2шт.

5

163065A1

UNION

2шт.

6

158842A1

PLUG

G1/4"

2шт.
