(35.736.AK[03]) - VAR - 461585 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX210D NLC (35.736.AK[03]) - VAR - 461585 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

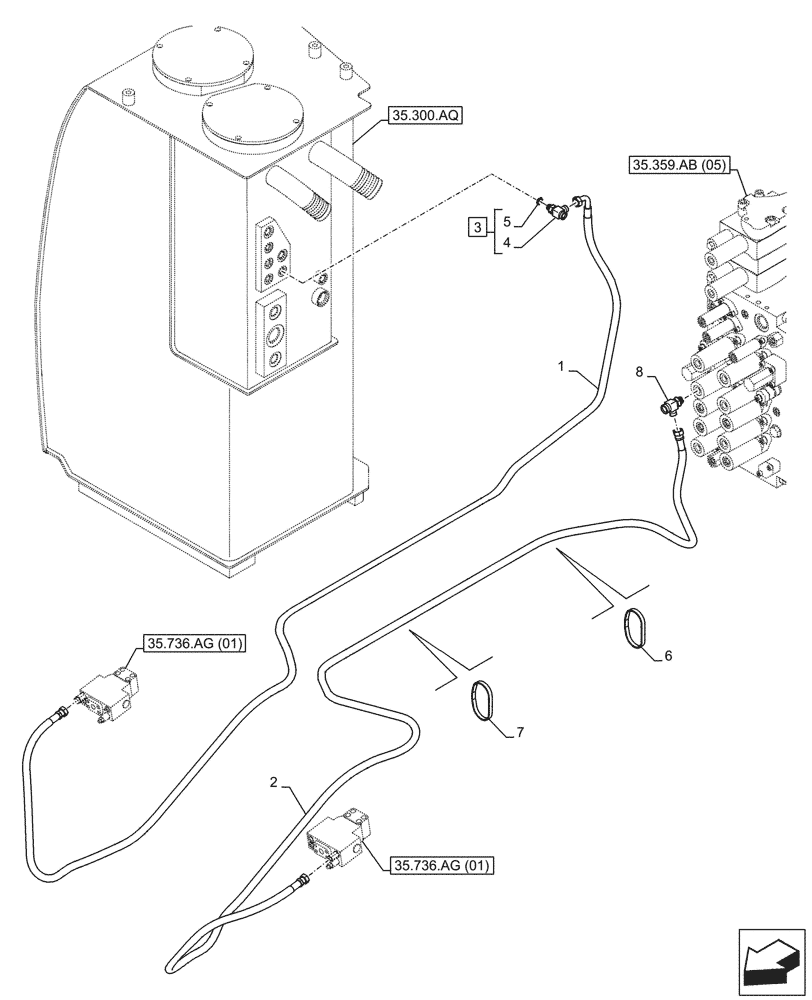

Схема запчастей Case CX210D NLC - (35.736.AK[03]) - VAR - 461585 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.300.aq
3
5
7
35.736.ag (01)
4
8
35.736.ag (01)
2
35.359.ab (05)
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ33850

HYDRAULIC HOSE

9mm ID x 3500mm, From Oil Tank to Safety Valve

1шт.

2

KHJ22110

HYDRAULIC HOSE

9mm ID x 3700mm, From Main Control Valve to Safety Valve

1шт.

3

KHJ11560

TEE

ASSY, Incl 4 - 5

1шт.

4

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 3

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

150071A1

MOUNTING CLIP

380mm

18шт.

7

150496A1

MOUNTING CLIP

250mm

2шт.

8

KHJ31880

TEE

1шт.
