(35.737.BC[01]) - VAR - 461585 - ARM, LIFT CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX210D NLC (35.737.BC[01]) - VAR - 461585 - ARM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

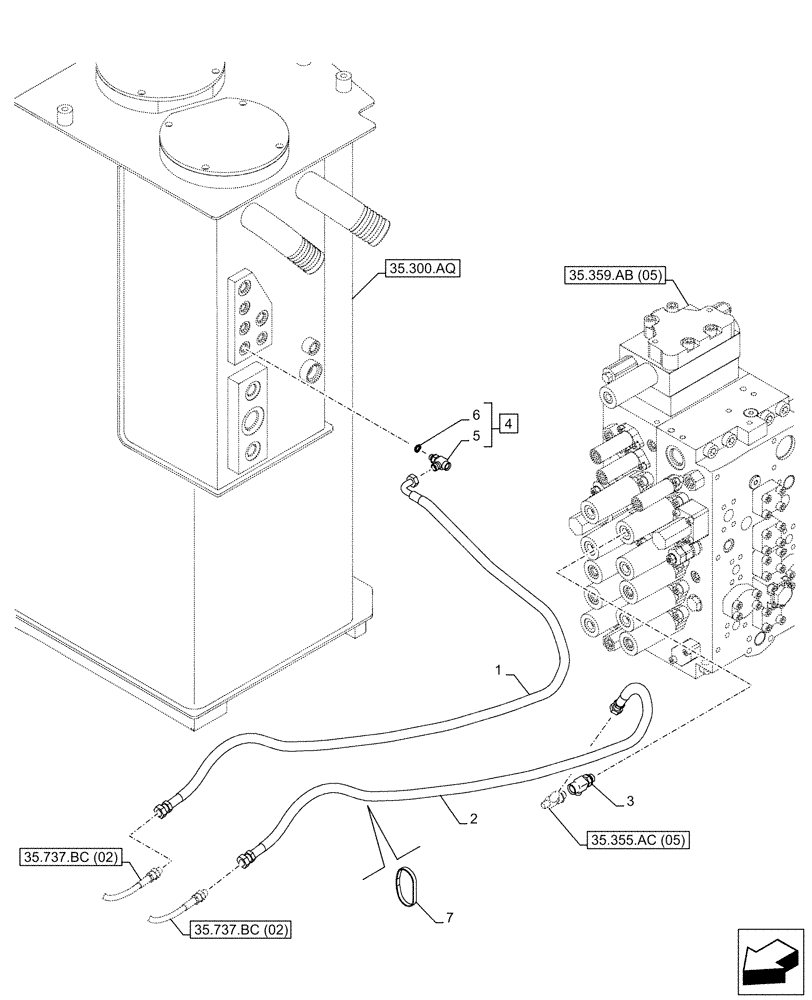

Схема запчастей Case CX210D NLC - (35.737.BC[01]) - VAR - 461585 - ARM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.355.ac (05)
2
7
1
6
4
3
5
35.300.aq
35.737.bc (02)
35.737.bc (02)
35.359.ab (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ18450

HYDRAULIC HOSE

1800mm, From Oil Tank to Arm Cylinder

1шт.

2

KHJ18350

HYDRAULIC HOSE

1350mm, From Main Control Valve to Arm Cylinder

1шт.

3

KHJ31880

TEE

1шт.

4

KHJ11560

TEE

ASSY, Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 4

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

150496A1

MOUNTING CLIP

250mm

3шт.
