(55.011.AE) - VAR - 481257 - FUEL TRANSFER PUMP

Запчасти Case CX210D NLC (55.011.AE) - VAR - 481257 - FUEL TRANSFER PUMP (55) - ELECTRICAL SYSTEMS

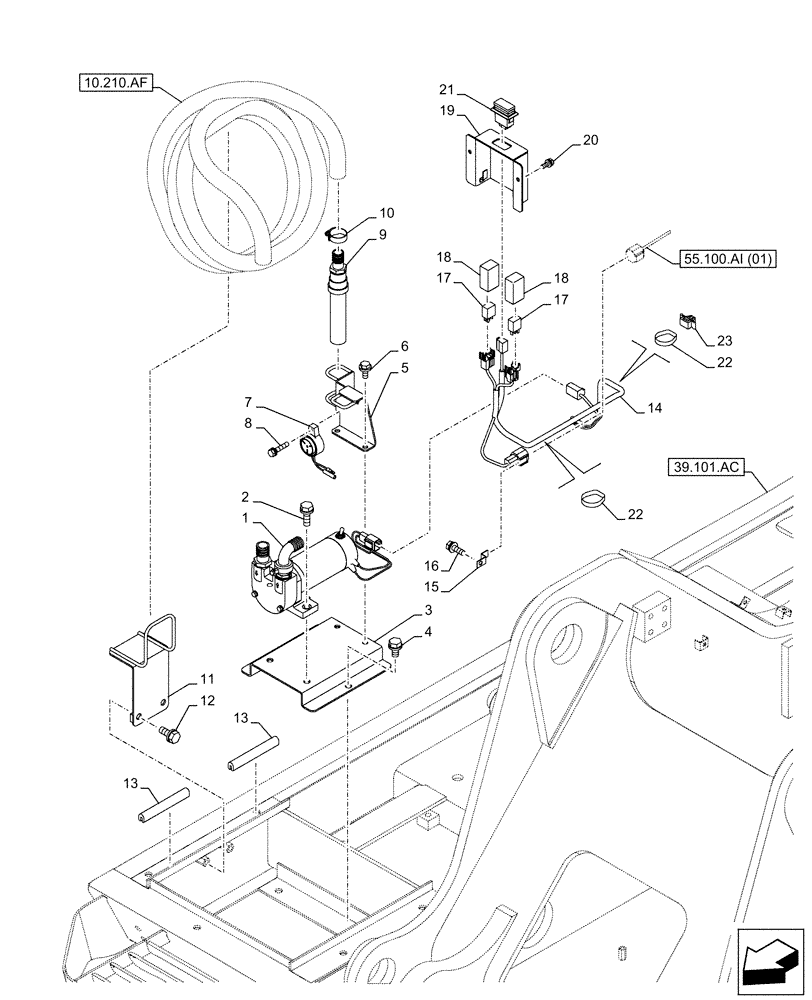

Схема запчастей Case CX210D NLC - (55.011.AE) - VAR - 481257 - FUEL TRANSFER PUMP (55) - ELECTRICAL SYSTEMS
10.210.af
20
14
8
21
19
7
6
9
2
16
1
13
5
3
23
12
18
4
15
18
17
22
13
11
17
10
22
55.100.ai (01)
39.101.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR12840

FUEL PUMP

Fuel Feed Pump 50 L/min

1шт.

2

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30mm

2шт.

3

KHR43600

BRACKET

1шт.

4

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20mm

2шт.

5

KHR43540

BRACKET

1шт.

6

166350A1

BOLT

M8 x 20mm

2шт.

7

KHR4024

ALARM

Alarm 24V 107dB

1шт.

8

KHR1832

SPECIAL BOLT

M5 x 25mm

1шт.

9

KHR12430

VALVE SECTION

Valve 50 L/min

1шт.

10

157917A1

COLLAR

1шт.

11

KHR43531

BRACKET

1шт.

12

166052A1

BOLT

M10 x 25mm

2шт.

13

KHR45270

SEAL PROTECTION

2шт.

14

KHR43610

WIRE HARNESS

1шт.

15

KHR37410

CLIP

1шт.

16

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

17

KHR3802

RELAY

Relay condenser 24V

2шт.

18

159904A1

COVER

2шт.

19

KHR15080

COVER

1шт.

20

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16mm

2шт.

21

KHR12900

SWITCH

Feed pump switch

1шт.

22

150496A1

MOUNTING CLIP

4шт.

23

KHR10220

MOUNTING CLIP

1шт.
