(55.036.AB[03]) - VAR - 461583, 461867, 461870 - HYDRAULIC, FLUID, PRESSURE SWITCH, SHEARS, HIGH FLOW

Запчасти Case CX210D NLC (55.036.AB[03]) - VAR - 461583, 461867, 461870 - HYDRAULIC, FLUID, PRESSURE SWITCH, SHEARS, HIGH FLOW (55) - ELECTRICAL SYSTEMS

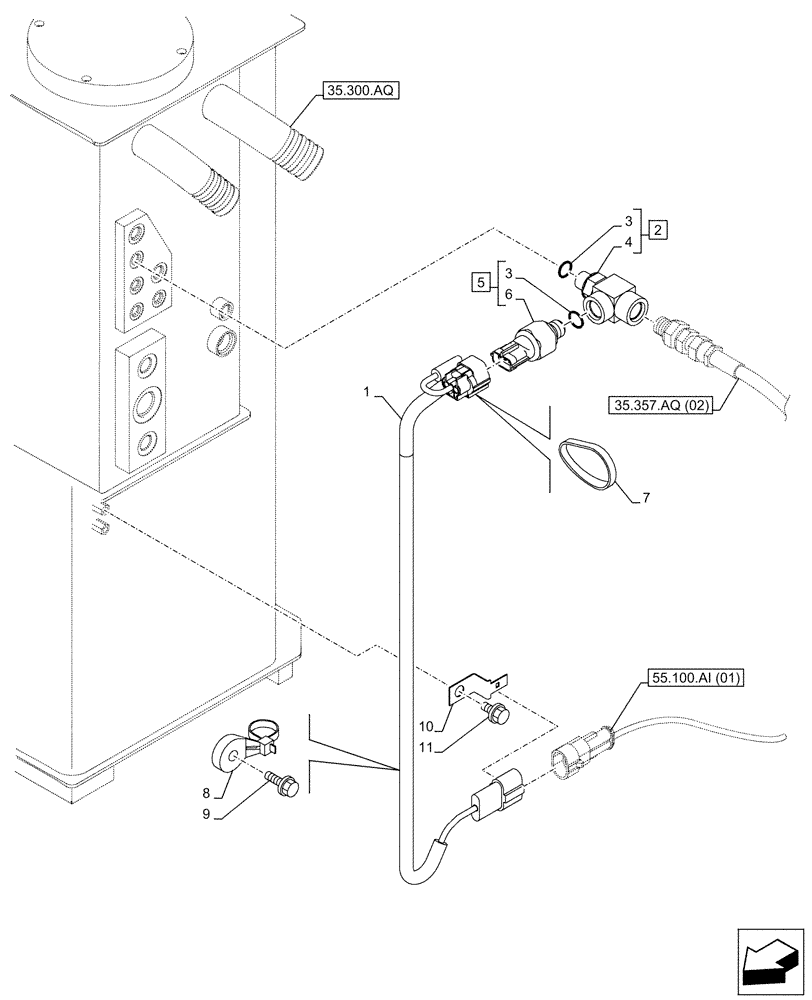

Схема запчастей Case CX210D NLC - (55.036.AB[03]) - VAR - 461583, 461867, 461870 - HYDRAULIC, FLUID, PRESSURE SWITCH, SHEARS, HIGH FLOW (55) - ELECTRICAL SYSTEMS
35.357.aq (02)
9
10
4
8
3
3
6
5
1
2
11
7
55.100.ai (01)
35.300.aq
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR42050

WIRE HARNESS

Sump Tank to Main Harness

1шт.

2

KHJ12530

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 3(Qty 1), 4

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 2

1шт.

5

KHR32870

SENSOR

ASSY, G1/4", Incl 3(Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Pressure Sensor 1Mpa, Incl in 5

1шт.

7

150496A1

MOUNTING CLIP

250mm

1шт.

8

KHR2584

CLAMP

M8

2шт.

9

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.

10

158962A1

CLIP

1шт.

11

167518A1

BOLT

M8 x 16mm

1шт.
