(55.425.AT[01]) - VAR - 461561, 461583 - HAMMER CIRCUIT, PRESSURE SENSOR, W/ HYDRAULIC CONTROL

Запчасти Case CX210D NLC (55.425.AT[01]) - VAR - 461561, 461583 - HAMMER CIRCUIT, PRESSURE SENSOR, W/ HYDRAULIC CONTROL (55) - ELECTRICAL SYSTEMS

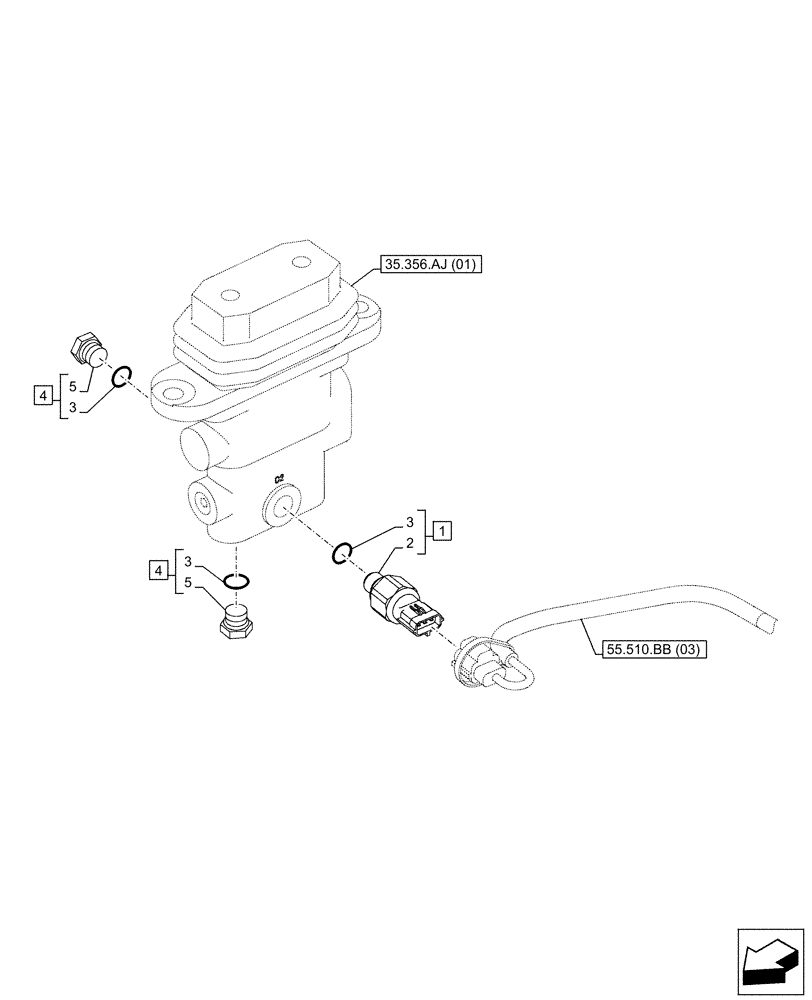

Схема запчастей Case CX210D NLC - (55.425.AT[01]) - VAR - 461561, 461583 - HAMMER CIRCUIT, PRESSURE SENSOR, W/ HYDRAULIC CONTROL (55) - ELECTRICAL SYSTEMS
55.510.bb (03)
2
3
3
4
3
1
5
4
5
35.356.aj (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY Pressure Sensor 5.0 Mpa, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Pressure Sensor 5.0 Mpa, Incl in 1

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

4

159002A1

PLUG

ASSY, Incl 3 (Qty 1), 5

2шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.
