(55.425.AT[04]) - VAR - 461869, 461870 - PRESSURE SENSOR, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D NLC (55.425.AT[04]) - VAR - 461869, 461870 - PRESSURE SENSOR, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

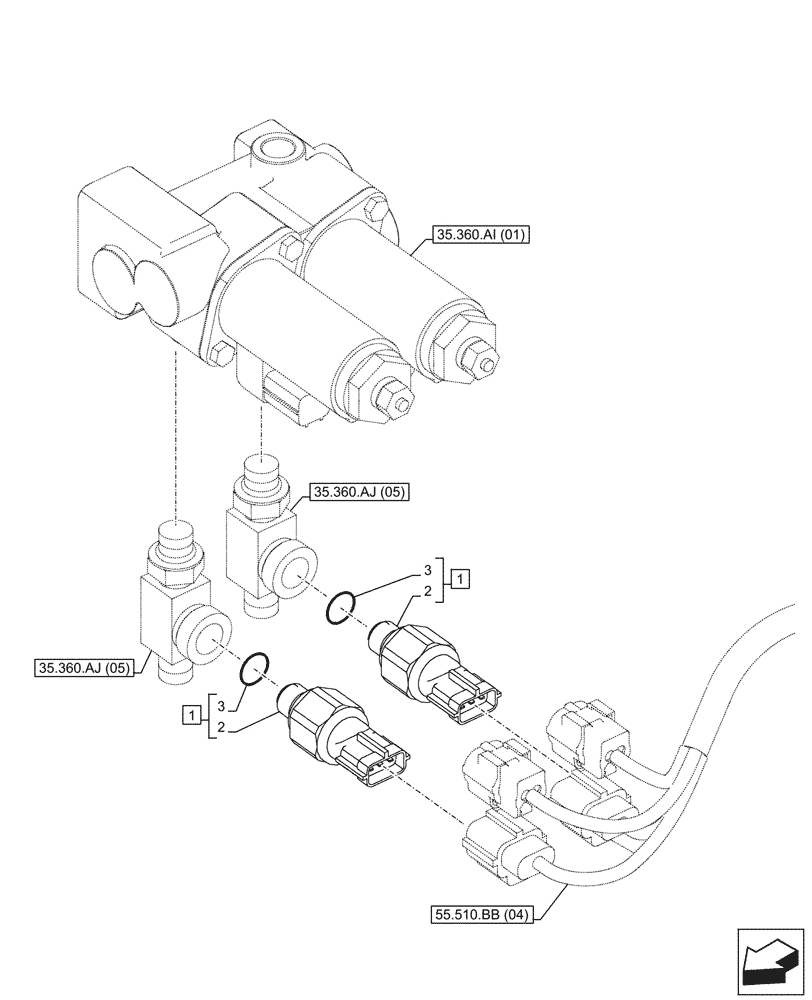

Схема запчастей Case CX210D NLC - (55.425.AT[04]) - VAR - 461869, 461870 - PRESSURE SENSOR, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
55.510.bb (04)
3
2
1
2
3
1
35.360.aj (05)
35.360.aj (05)
35.360.ai (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY Pressure Sensor 5MPa, Incl 2 - 3

2шт.

2

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

2шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.
