(35.106.AO[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE

Запчасти Case CX210D NLC (35.106.AO[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

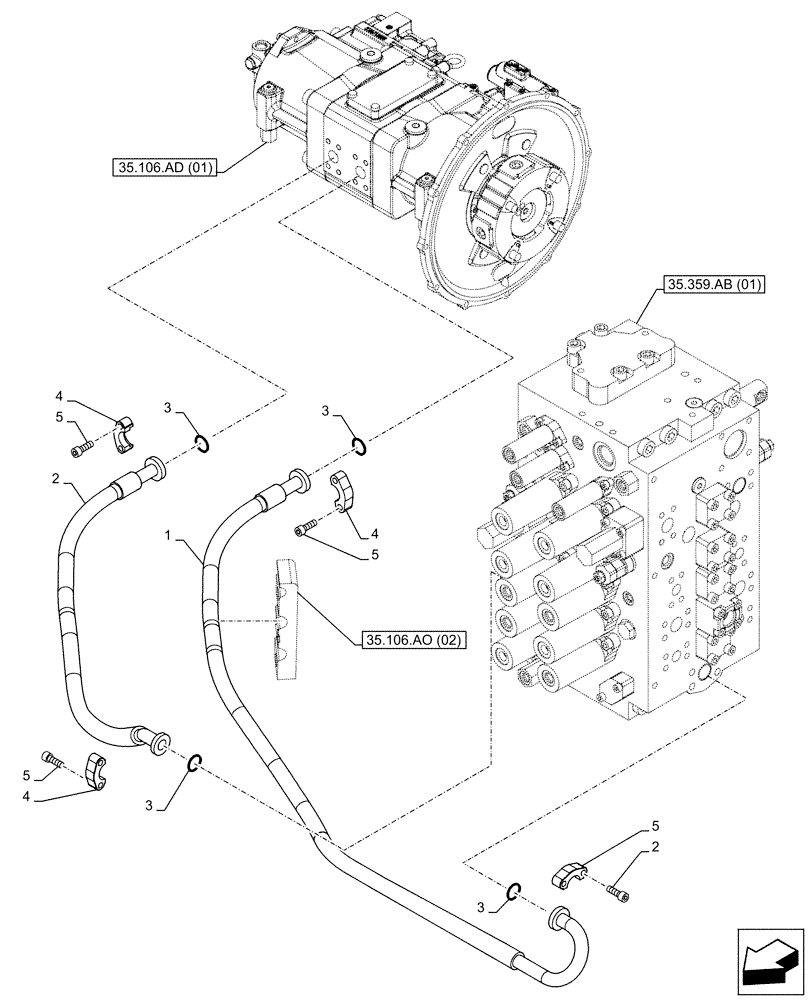

Схема запчастей Case CX210D NLC - (35.106.AO[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
3
3
5
2
4
3
2
5
1
4
5
3
5
4
35.106.ao (02)
35.106.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ18970

HYDRAULIC HOSE

22mm ID x 2010mm

1шт.

2

KRJ37490

HYDRAULIC HOSE

22mm ID x 950mm

1шт.

3

162246A1

O-RING

4шт.

4

150561A1

FLANGE

8шт.

5

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

M12 x 40mm

16шт.
