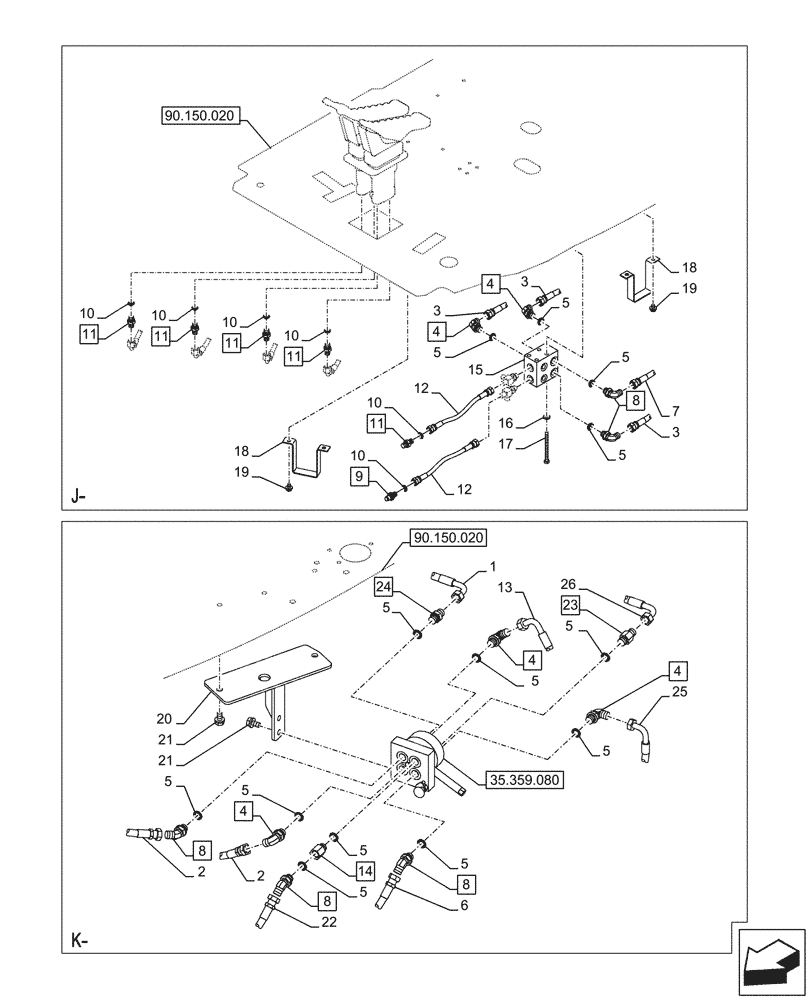

Запчасти Case CX245D (35.355.130) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ38070

HYDRAULIC HOSE

9mm ID x 47mm, From Valve Selector to Cushion Valve

1шт.

2

159217A1

HYDRAULIC HOSE

9mm ID x 185mm, From Remote Control Valve to Valve Selector

2шт.

3

KHJ2272

HOSE ASSY.

9mm ID x 155mm, From Remote Control Valve to Manifold

3шт.

4

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

5шт.

5

150031A1

O-RING,10mm ID x 24mm OD

12шт.

6

159211A1

HYDRAULIC HOSE

9mm ID x 2mm, From Remote Control Valve to Valve Selector

1шт.

7

KHJ2100

FLEXIBLE HOSE

9mm ID x 15mm, From Remote Control Valve to Valve Selector

1шт.

8

KHJ28640

ELBOW

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

3шт.

9

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 10 (Qty 1)

1шт.

10

150960A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 10 (Qty 1)

5шт.

12

KHJ36110

HOSE

6mm ID x 26mm, From Remote Control Valve to Manifold

2шт.

13

KHJ38080

HYDRAULIC HOSE

9mm ID x 11mm, From Valve Selector to Cushion Valve

1шт.

14

KHJ13790

STUD

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

1шт.

15

KRJ5903

MANIFOLD

1шт.

16

153081A1

WASHER

4шт.

17

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

M 8 x 1mm

4шт.

18

KHJ10250

CLAMP

2шт.

19

166345A1

BOLT

M8 x 16mm

4шт.

20

KRJ43170

BRACKET

1шт.

21

166351A1

BOLT,Sems, M10 x 20mm

M1 x 2mm

4шт.

22

KHJ22430

HYDRAULIC HOSE

9mm ID x 25mm, From Remote Control Valve to Valve Selector

1шт.

23

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

1шт.

24

150812A1

ADAPTER

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

1шт.

25

KHJ11440

HYDRAULIC HOSE

9mm ID x 1mm, From Valve Selector to Cushion Valve

1шт.

26

KHJ38060

HYDRAULIC HOSE

9mm ID x 45mm, From Valve Selector to Cushion Valve

1шт.
