(35.736.050) - VAR - 481064 - BOOM, CYLINDER, VALVE, LINES

Запчасти Case CX245D (35.736.050) - VAR - 481064 - BOOM, CYLINDER, VALVE, LINES (35) - HYDRAULIC SYSTEMS

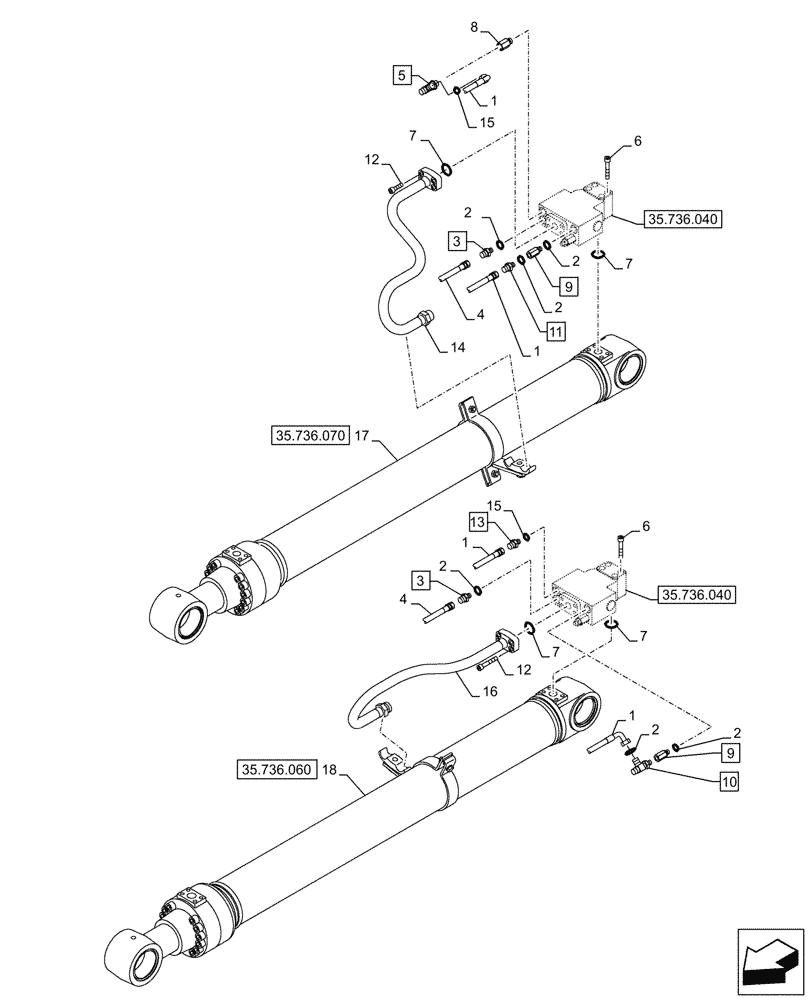

Схема запчастей Case CX245D - (35.736.050) - VAR - 481064 - BOOM, CYLINDER, VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.736.040
7
6
6
18
17
1
3
10
5
2
13
7
2
4
1
15
3
7
9
15
14
12
8
16
2
2
9
1
12
11
1
7
4
2
2
35.736.070
35.736.060
35.736.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1435

HYDRAULIC HOSE

9mm ID x 115mm

2шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 2

2шт.

4

KRV19790

HYDRAULIC HOSE

115mm

1шт.

5

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, 3-G3/8", Incl 15

1шт.

6

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

M1 x 7mm

8шт.

7

161097A1

O-RING

4шт.

8

KHV0373

STUD

G3/8" x G3/8" x 42mm

1шт.

9

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 2

2шт.

10

162827A1

TEE

ASSY, G1/4" x G3/8" x G3/8", Incl 2

1шт.

11

152747A1

ADAPTER

ASSY, G1/4" x G3/8", Incl 2

1шт.

12

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

M1 x 35mm

8шт.

13

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 15

1шт.

14

KRV12080Y2

HYD TUBE

1шт.

15

150031A1

O-RING,10mm ID x 24mm OD

2шт.

16

KRV12070Y2

HYD TUBE

1шт.

17

KRV48660

HYDRAULIC CYLINDER

ASSY

1шт.

18

KRV48650

HYDRAULIC CYLINDER

ASSY

1шт.
