(35.360.260) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX245D SR LC (35.360.260) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

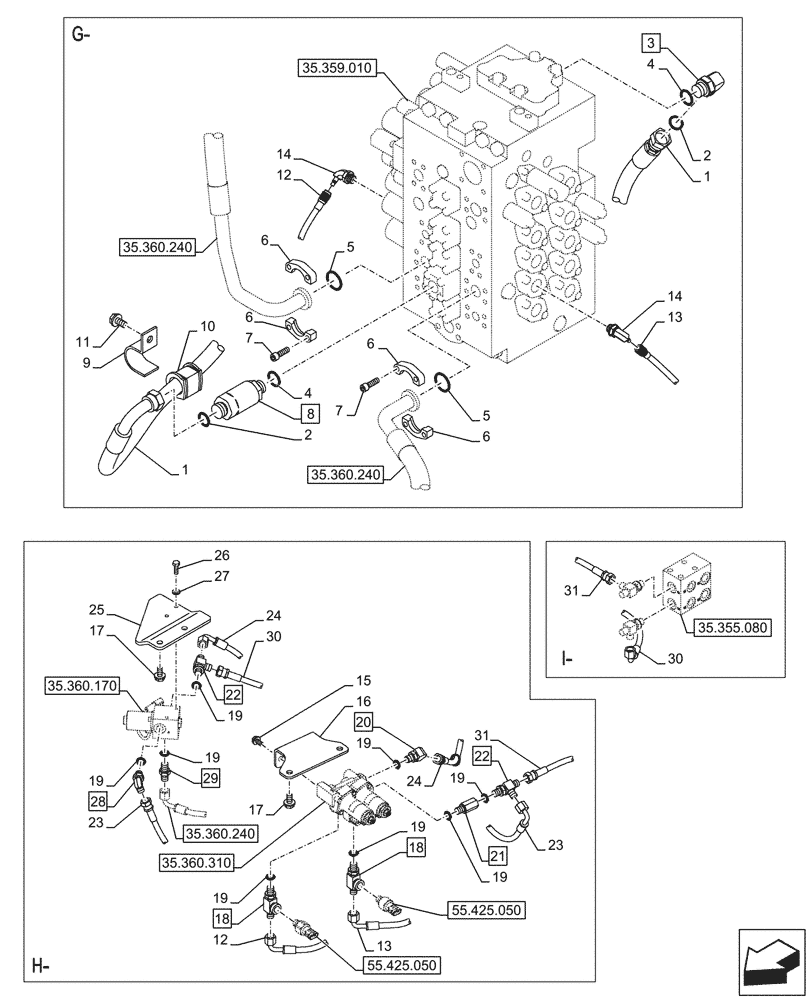

Схема запчастей Case CX245D SR LC - (35.360.260) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
55.425.050
28
19
6
13
19
7
15
12
3
17
14
19
19
6
1
24
17
11
7
30
2
16
22
23
2
19
5
19
10
19
6
19
20
25
21
8
13
23
31
24
4
4
27
18
12
31
18
30
5
14
26
29
22
9
1
6
35.360.240
35.360.240
35.360.240
35.360.170
35.360.310
35.355.080
35.359.010
55.425.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ43040

HYDRAULIC HOSE

19mm ID x 1210mm

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KHJ1804

ELBOW

ASSY, G3/4" x 13/16", Incl 4 (Qty 1)

1шт.

4

154503A1

O-RING

2шт.

5

155211A1

O-RING

2шт.

6

153459A1

FLANGE

4шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

8

KHJ10480

VALVE SECTION

ASSY, Incl 4 (Qty 1)

1шт.

9

KBJ11860

SUPPORT

1шт.

10

KHJ2680

COLLAR CLAMP

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

12

KHJ38340

6mm ID x 2900mm

HYDRAULIC HOSE

1шт.

13

KHJ38330

6mm ID x 2200mm

HYDRAULIC HOSE

1шт.

14

KHJ38250

ELBOW

G3/8" x 1/4"

2шт.

15

166345A1

BOLT

M8 x 16mm

2шт.

16

KHJ28770

BRACKET

1шт.

17

166351A1

BOLT,Sems, M10 x 20mm

2шт.

18

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 19 (Qty 1)

2шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

20

KHJ0994

ADAPTER

ASSY, Incl 19 (Qty 1)

1шт.

21

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 19 (Qty 1)

1шт.

22

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 19 (Qty 1)

1шт.

23

KHJ2238

HOSE

6mm ID x 320mm

1шт.

24

KHJ2084

HOSE

6mm ID x 350mm

1шт.

25

KRJ32940

BRACKET

1шт.

26

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

27

183-106VR

SPRING WASHER

2шт.

28

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 19 (Qty 1)

1шт.

29

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 19 (Qty 1)

1шт.

30

KHJ2239

HOSE,520.00 mm

6mm ID x 520mm

1шт.

31

KHJ2189

HOSE ASSY.

6mm ID x 280mm

1шт.
