(35.360.300) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX245D SR LC (35.360.300) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

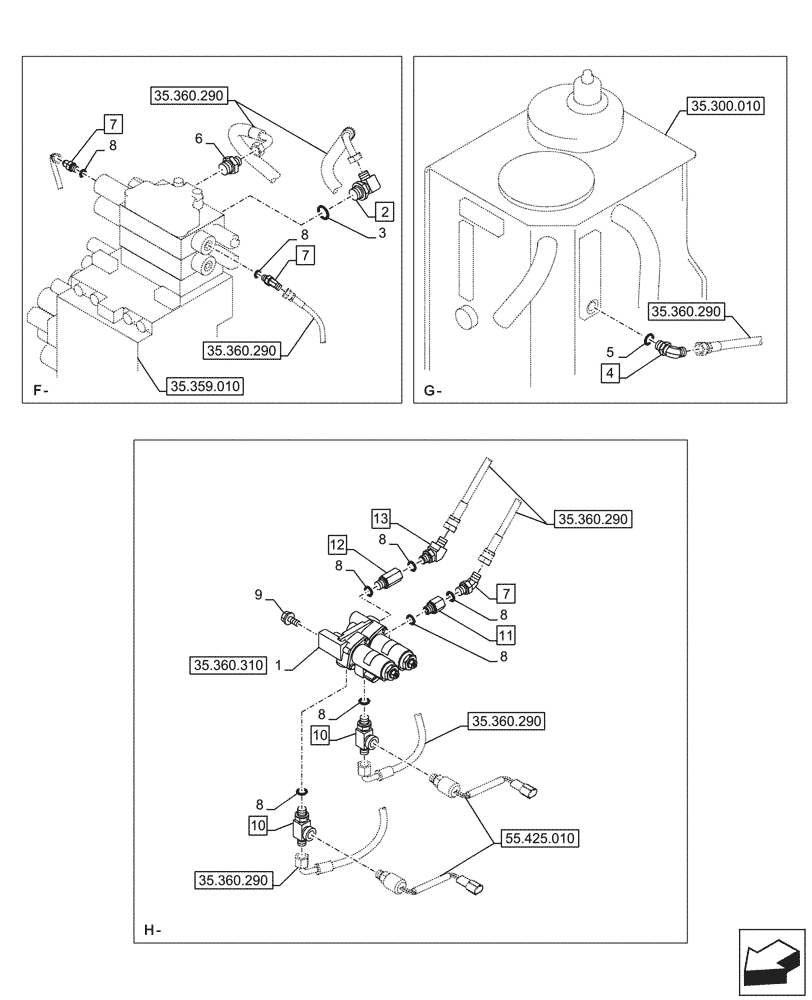

Схема запчастей Case CX245D SR LC - (35.360.300) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
55.425.010
2
8
8
1
8
10
10
8
9
13
8
7
3
8
11
5
6
7
4
12
7
8
8
35.359.010
35.300.010
35.360.290
35.360.290
35.360.290
35.360.290
35.360.290
35.360.290
35.360.310
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MFJ71500

VALVE SECTION

ASSY

1шт.

2

157936A1

ELBOW

ASSY, G3/4" x G1/2", Incl 3

1шт.

3

154503A1

O-RING

1шт.

4

KHJ28600

ELBOW

ASSY, G1/2" x G1/2", Incl 5

1шт.

5

154487A1

O-RING

1шт.

6

168988A1

ADAPTER

G1/2" x G3/4"

1шт.

7

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 8 (Qty 1)

3шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

9

166350A1

BOLT

M8 x 20mm

2шт.

10

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 8 (Qty 1)

2шт.

11

KHJ13640

STUD

ASSY, G1/4", Incl 8 (Qty 1)

1шт.

12

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 8 (Qty 1)

1шт.

13

KHJ0994

ADAPTER

ASSY, Incl 8 (Qty 1)

1шт.
