(35.736.010) - LIFT CYLINDER, BOOM, LINE

Запчасти Case CX245D SR LC (35.736.010) - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS

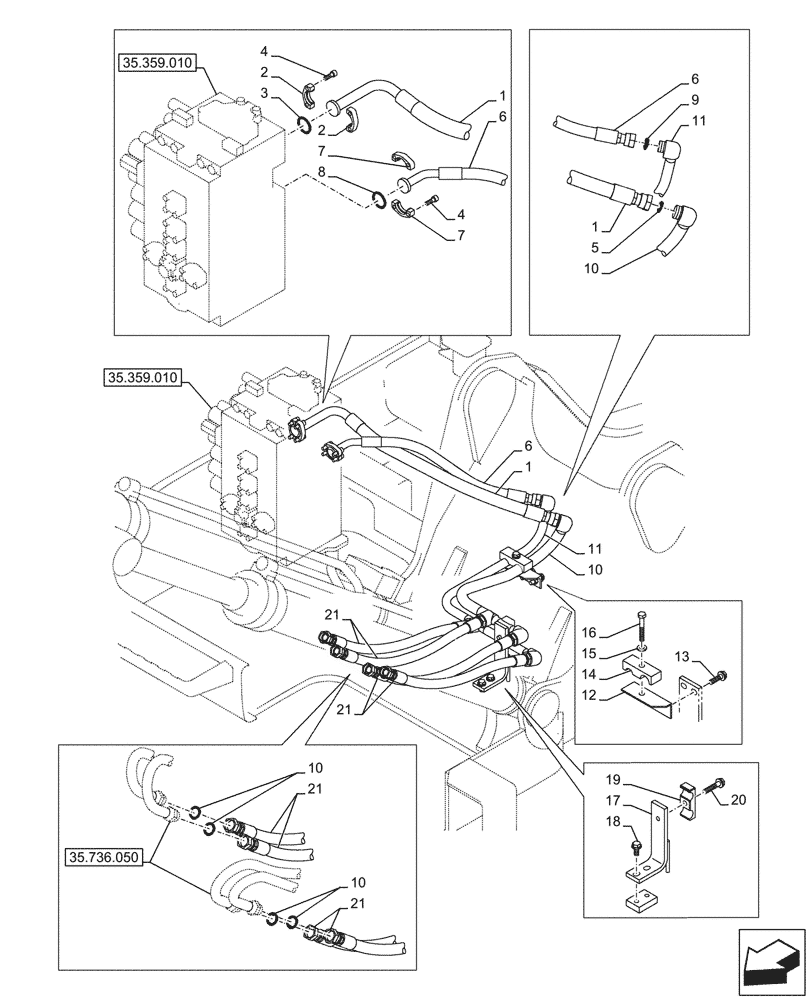

Схема запчастей Case CX245D SR LC - (35.736.010) - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS
35.736.050
19
6
1
15
10
21
17
10
8
20
16
4
10
11
7
3
5
21
4
13
12
1
14
21
7
2
9
6
6
11
1
10
2
18
21
35.359.010
35.359.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ39100

HYDRAULIC HOSE

25mm ID x 890mm

1шт.

2

153459A1

FLANGE

2шт.

3

155211A1

O-RING

1шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KRJ39110

HYDRAULIC HOSE

19mm ID x 720mm

1шт.

7

153458A1

FLANGE

2шт.

8

155210A1

O-RING

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

5шт.

10

KRJ42660

PIPE

1шт.

11

KRJ42650

PIPE

1шт.

12

KRJ31010

BRACKET

1шт.

13

105R012Y045R

BOLT

M12 x 45mm

2шт.

14

153186A1

COLLAR

1шт.

15

150811A1

WASHER

1шт.

16

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

17

KRJ30360

BRACKET

1шт.

18

166352A1

BOLT

M12 x 30mm

2шт.

19

152085A1

COLLAR

2mm x 27.2mm

1шт.

20

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

1шт.

21

KRJ31100

HYDRAULIC HOSE

19mm ID x 730mm

4шт.
