(35.738.020) - VAR - 481268 - BUCKET CYLINDER LINES (ARM L=2.90M)

Запчасти Case CX245D SR LC (35.738.020) - VAR - 481268 - BUCKET CYLINDER LINES (ARM L=2.90M) (35) - HYDRAULIC SYSTEMS

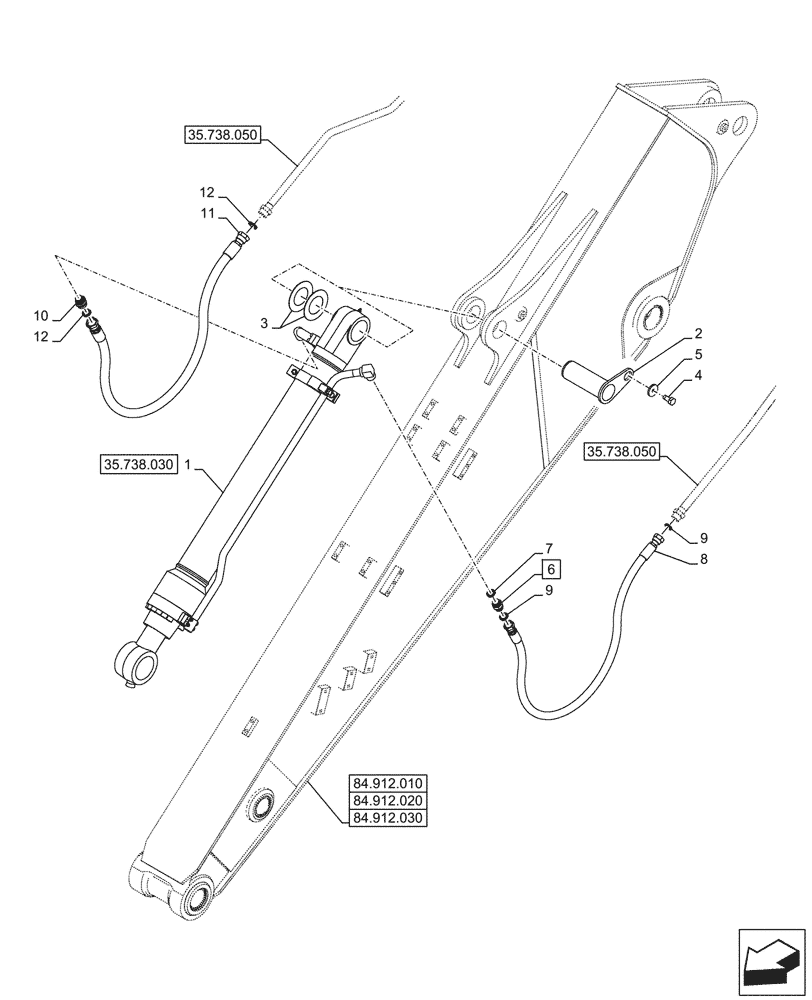

Схема запчастей Case CX245D SR LC - (35.738.020) - VAR - 481268 - BUCKET CYLINDER LINES (ARM L=2.90M) (35) - HYDRAULIC SYSTEMS
35.738.030
3
5
7
11
1
8
12
2
4
6
9
9
12
10
35.738.050
35.738.050
84.912.030
84.912.010
84.912.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV43120

HYDRAULIC CYLINDER

ASSY

1шт.

2

KRV10990

PIN

1шт.

3

160452A1

SHIM

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

5

157141A1

WASHER

1шт.

6

KHJ1348

ADAPTER

ASSY, Fitting, Incl 7

1шт.

7

154503A1

O-RING

1шт.

8

KRV12791

HYDRAULIC HOSE

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

KHJ15840

ADAPTER

1шт.

11

KRV22580

HYDRAULIC HOSE,22.2mm ID x 1550mm L

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
