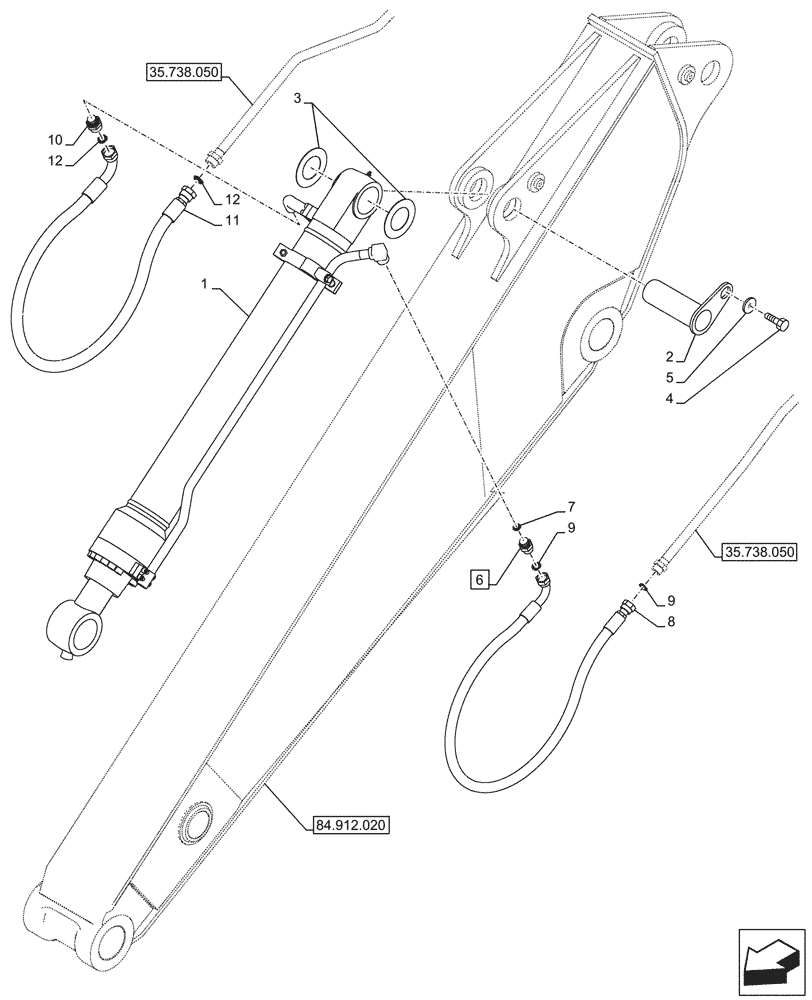

Запчасти Case CX245D SR LC (35.738.040) - VAR - 461501 - BUCKET CYLINDER, LINES (L=2.4M) (35) - HYDRAULIC SYSTEMS

1

KRV43120

HYDRAULIC CYLINDER

1шт.

2

KRV10990

PIN

1шт.

3

160452A1

SHIM

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

5

157141A1

WASHER

1шт.

6

KHJ1348

ADAPTER

ASSY, Incl 7

1шт.

7

154503A1

O-RING

1шт.

8

KRV33211

HYDRAULIC HOSE

19mm ID x 1700mm

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

KHJ15840

ADAPTER

G3/4"

1шт.

11

KRV33220

HYDRAULIC HOSE

1700mm

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
