(35.300.030) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE

Запчасти Case CX245D SR LC (35.300.030) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE (35) - HYDRAULIC SYSTEMS

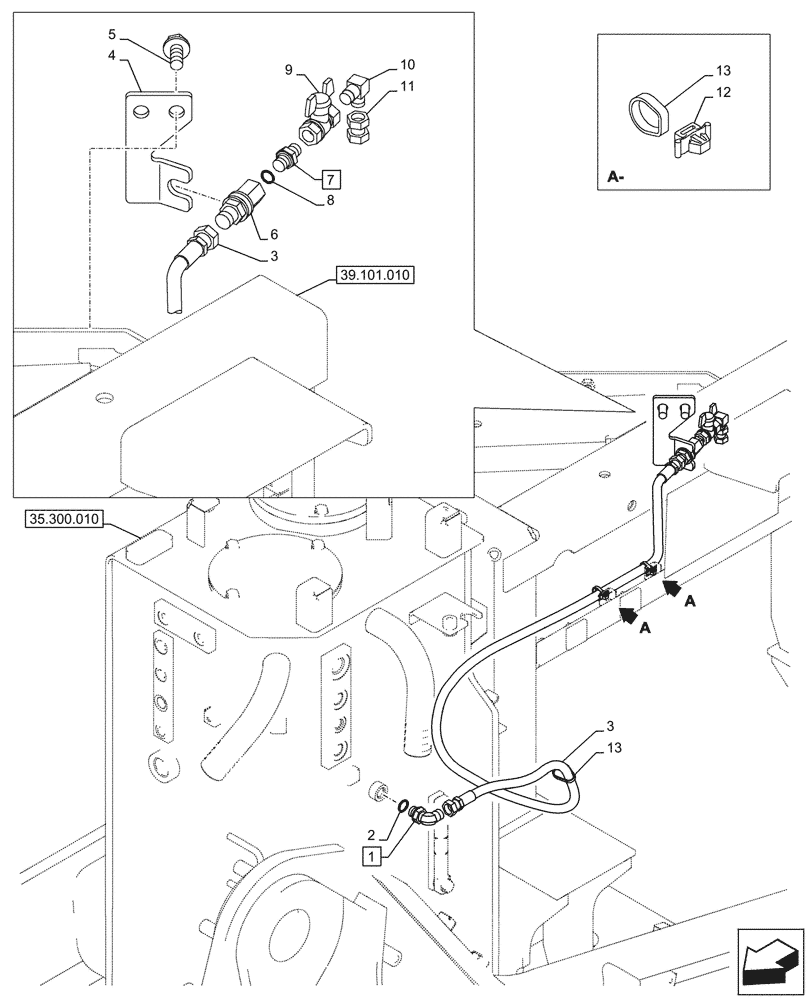

Схема запчастей Case CX245D SR LC - (35.300.030) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE (35) - HYDRAULIC SYSTEMS
35.300.010
2
12
5
4
6
3
11
13
8
10
9
7
3
13
1
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 2

1шт.

2

150031A1

O-RING,10mm ID x 24mm OD

1шт.

3

165782A1

HYDRAULIC HOSE,9.50 mm ID x 1400.00 mm

From Oil Tank to Cock Drain

1шт.

4

KRJ44450

BRACKET

1шт.

5

166352A1

BOLT

M12 x 3mm

2шт.

6

KHJ0569

ADAPTER

G1/4" x G3/8"

1шт.

7

152899A1

HYD CONNECTOR

ASSY, Incl 8

1шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

158923A1

DRAIN VALVE

1шт.

10

153596A1

ADAPTER

1шт.

11

158842A1

PLUG

G1/4"

1шт.

12

KHR10220

MOUNTING CLIP

2шт.

13

150496A1

MOUNTING CLIP

25mm

3шт.
