(35.355.070) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX245D SR LC (35.355.070) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

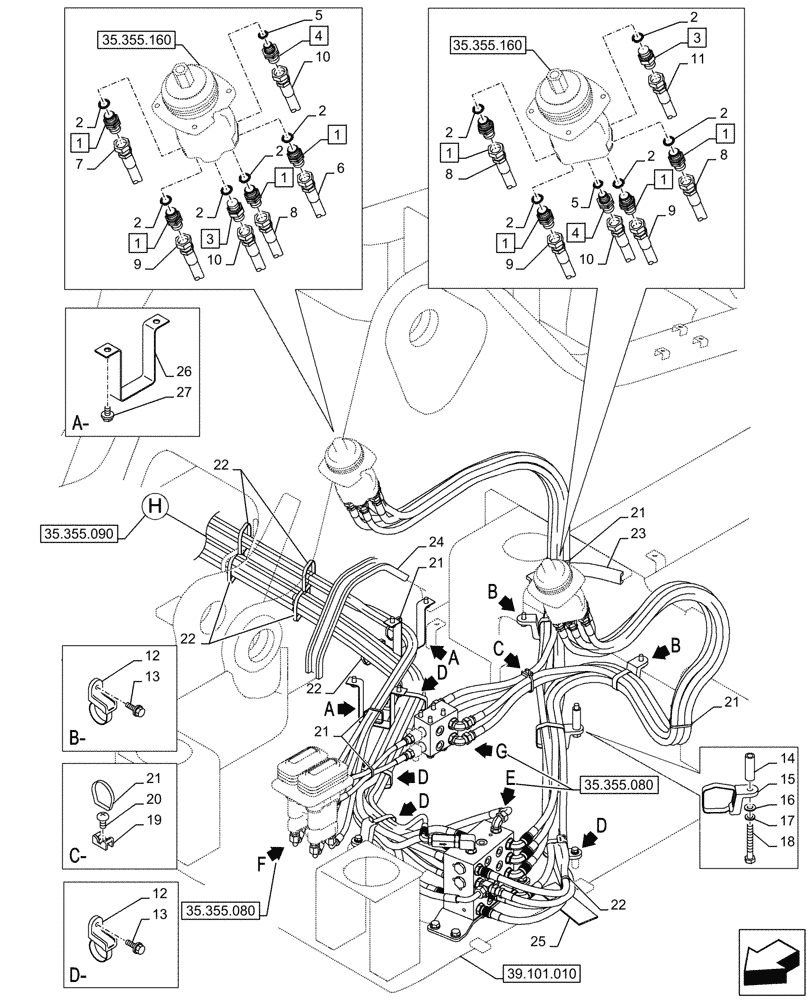

Схема запчастей Case CX245D SR LC - (35.355.070) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.355.080
24
10
10
13
11
22
9
2
2
1
2
21
2
21
21
1
8
2
2
26
19
12
1
21
13
9
22
2
17
3
8
1
22
9
25
12
5
5
27
18
1
22
1
14
8
4
15
21
23
20
2
1
3
7
2
6
1
4
2
10
16
39.101.010
35.355.090
35.355.160
35.355.160
35.355.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1402

ADAPTER

ASSY, G3/8" x G3/8", Incl 2 (Qty 1)

8шт.

2

154475A1

O-RING

10шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 2 (Qty 1)

2шт.

4

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

ASSY, G1/4" x G3/8", Incl 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

06mm ID x 2200mm, from Joystick to Cushion Valve

1шт.

7

KHJ38020

HYDRAULIC HOSE

9mm ID x 1950mm, from Joystick to Cushion Valve

1шт.

8

KHJ38030

HYDRAULIC HOSE

9mm ID x 2200mm, from Joystick to Cushion Valve

3шт.

9

KHJ38010

HYDRAULIC HOSE

9mm ID x 1850mm, from Joystick to Cushion Valve

3шт.

10

KHJ2272

HOSE ASSY.

9mm ID x 1550mm , from Joystick to Manifold

3шт.

11

KHJ2100

FLEXIBLE HOSE

9mm ID x 1500mm , from Joystick to Manifold

1шт.

12

KHR2581

CLAMP

M8

6шт.

13

KHJ1215

BOLT,Spcl

M8 x 25mm

6шт.

14

KRJ40080

SPACER

1шт.

15

KHR2582

CLAMP

M10

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

17

892-11010

LOCK WASHER,M10

1шт.

18

102R010Y075R

BOLT

M10 x 75mm

1шт.

19

150860A1

COLLAR

1шт.

20

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

M6 x 8mm

1шт.

21

150496A1

MOUNTING CLIP

250mm

6шт.

22

150071A1

MOUNTING CLIP

380mm

5шт.

23

KAA1014

CUSHION

12mm ID x 220mm

1шт.

24

KAJ10110

SEAL PROTECTION

L=420mm

1шт.

25

KHN46720

PLATE

1шт.

26

KHJ10250

CLAMP

2шт.

27

166345A1

BOLT

M8 x 16mm

4шт.
