(35.300.AN[01]) - HYDRAULIC OIL RESERVOIR, OIL FILTER

Запчасти Case CX250D LC (35.300.AN[01]) - HYDRAULIC OIL RESERVOIR, OIL FILTER (35) - HYDRAULIC SYSTEMS

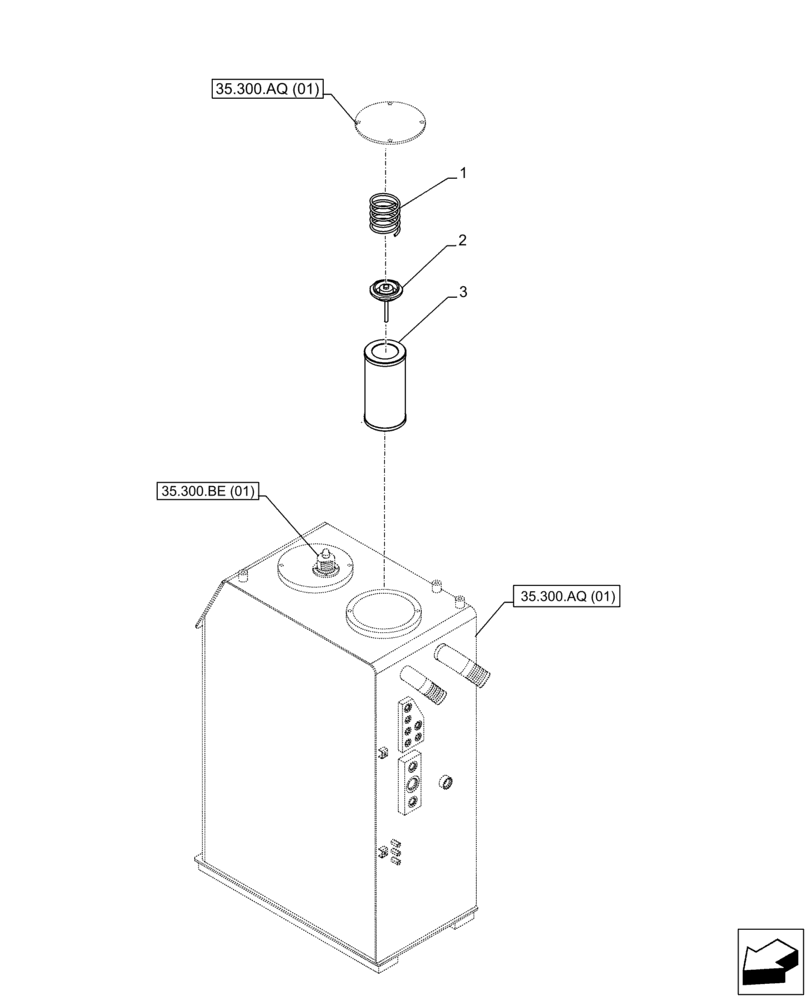

Схема запчастей Case CX250D LC - (35.300.AN[01]) - HYDRAULIC OIL RESERVOIR, OIL FILTER (35) - HYDRAULIC SYSTEMS
35.300.aq (01)
1
35.300.be
35.300.aq (01)
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ6663

SPRING

1шт.

2

159273A1

VALVE

1шт.

3

KRJ20710

HYDRAULIC OIL FILTER

Return

1шт.

Выбрано товаров: 3
