(50.100.AP[02]) - AIR CONDITIONING, W/ HEATER, COMPONENTS

Запчасти Case CX250D LC (50.100.AP[02]) - AIR CONDITIONING, W/ HEATER, COMPONENTS (50) - CAB CLIMATE CONTROL

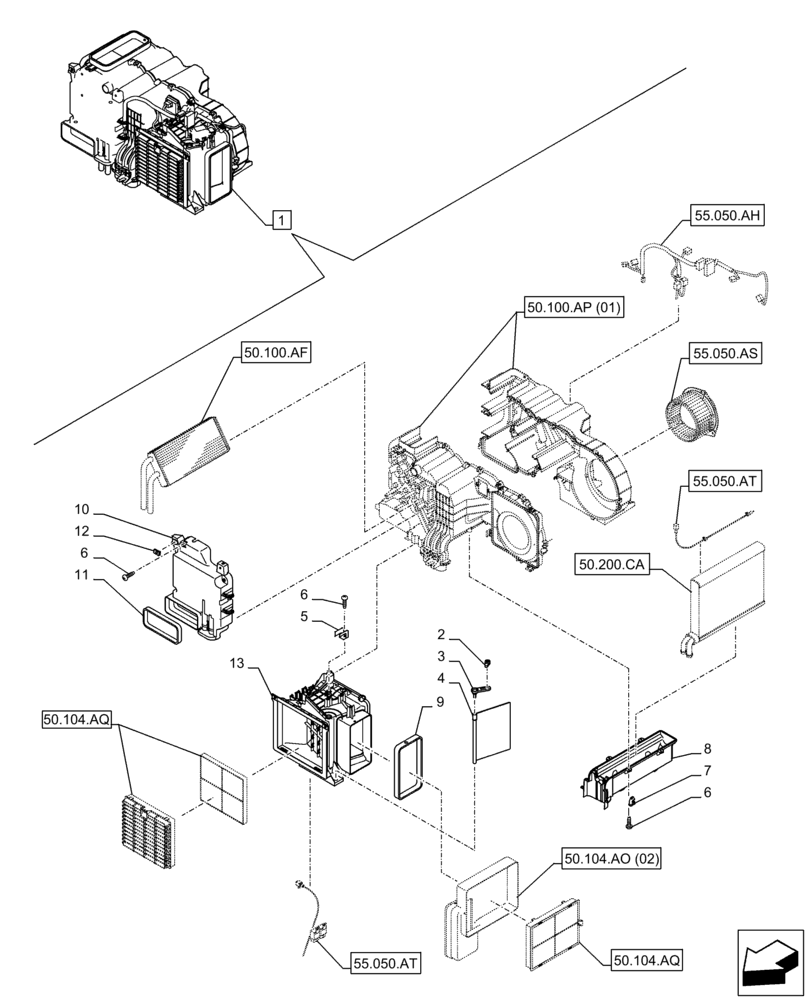

Схема запчастей Case CX250D LC - (50.100.AP[02]) - AIR CONDITIONING, W/ HEATER, COMPONENTS (50) - CAB CLIMATE CONTROL
55.050.at
7
3
9
13
50.104.ao (02)
6
4
10
2
1
50.200.ca
12
55.050.at
50.100.ap (01)
8
11
6
50.104.aq
5
55.050.ah
6
50.104.aq
55.050.as
50.100.af
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR27160

ECU

ASSY, Incl 2 - 13

1шт.

See also Figure 50.100.AP (01), 50.100.AF, 50.104.AQ, 50.200.CA, 55.050.AH, 55.050.AR, 55.050.AS, 55.050.AT

1шт.

2

KHR27460

LEVER

1шт.

3

KHR27510

LEVER

1шт.

4

KHR27480

DIFFUSER

1шт.

5

KHR27500

BRACKET, SUPPORTING

1шт.

6

KHR27520

SCREW

9шт.

7

KHR27890

CLIP

1шт.

8

KHR27880

DRAIN

1шт.

9

KHR27560

AERATOR

1шт.

10

KHR27570

COVER

1шт.

11

KHR27580

AERATOR

1шт.

12

KHR27590

NUT

1шт.

13

KHR27450

AIR DUCT

1шт.
