(55.425.AT[01]) - VAR - 461865 - PRESSURE SENSOR, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC (55.425.AT[01]) - VAR - 461865 - PRESSURE SENSOR, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

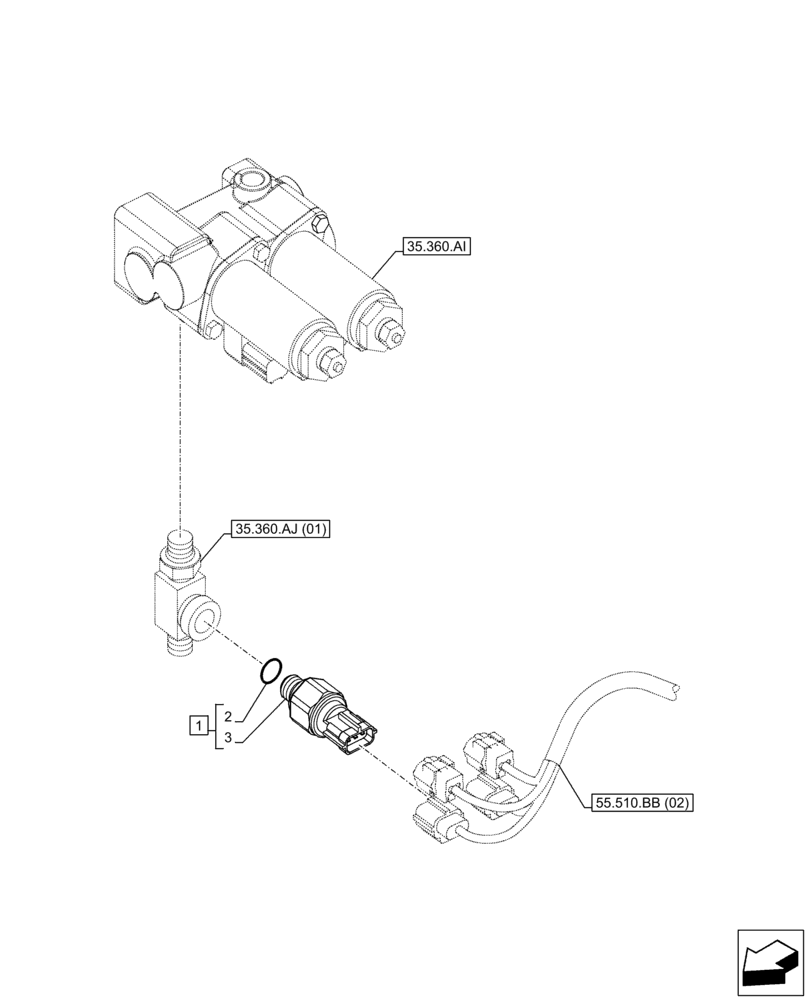

Схема запчастей Case CX250D LC - (55.425.AT[01]) - VAR - 461865 - PRESSURE SENSOR, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
1
35.360.aj (01)
2
55.510.bb (02)
35.360.ai
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY, Pressure Hammer Circuit, Incl 2, 3

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

1шт.
