(88.100.35[005]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.0M)

Запчасти Case CX250D LC (88.100.35[005]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.0M) (88) - ACCESSORIES

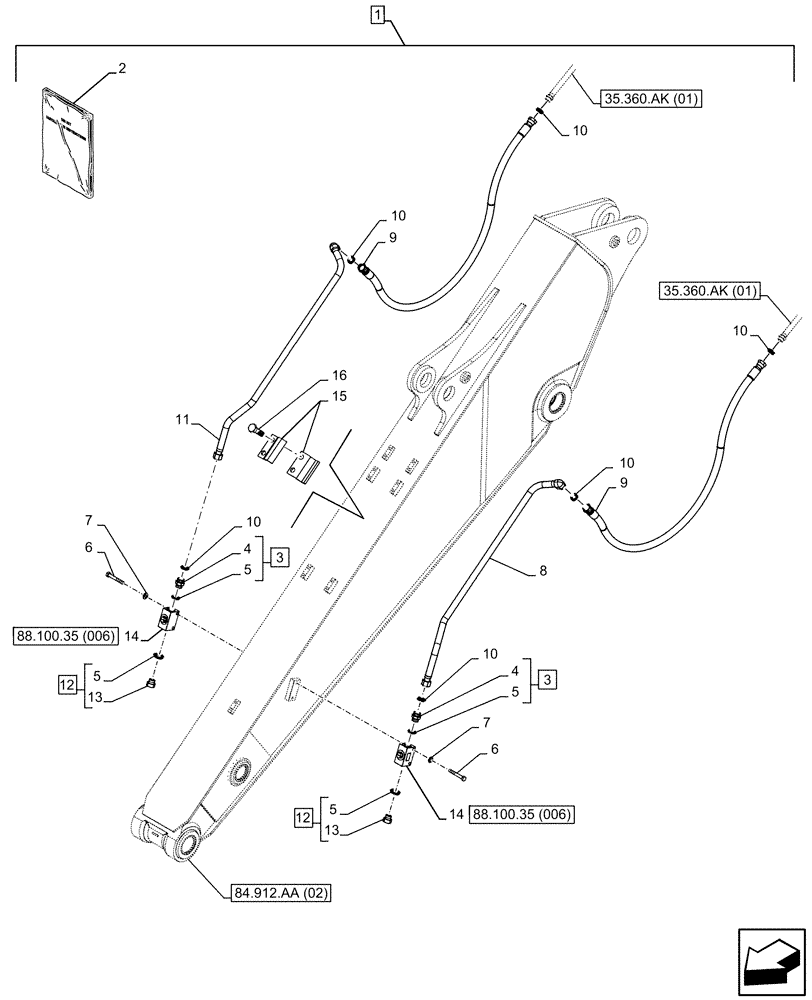

Схема запчастей Case CX250D LC - (88.100.35[005]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.0M) (88) - ACCESSORIES
5
4
3
9
1
4
3
7
13
88.100.35 (006)
8
84.912.aa (02)
10
88.100.35 (006)
6
5
10
16
35.360.ak (01)
14
15
10
11
5
2
9
10
13
6
7
12
12
10
14
10
35.360.ak (01)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP461-00

CONSTRUCTION DIA

Option Line, Bar Base, Standard Arm, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789066

INSTRUCTION

1шт.

2

47789103

INSTRUCTION

1шт.

3

KHJ1349

ADAPTER

ASSY, Incl 4, 5 (Qty 2)

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

2шт.

5

154523A1

O-RING

2шт.

6

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

M12 x 85mm

4шт.

7

150811A1

WASHER

4шт.

8

KBV16680

HYD TUBE,26 mm ID x 34 mm OD

1шт.

9

KRV19740

HYDRAULIC HOSE,25.40 mm ID x 1500.00 mm

2шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

11

KBV16690

HYD TUBE,26 mm ID x 34 mm OD

1шт.

12

162659A1

PLUG

ASSY, Incl 5 (Qty 2), 13

2шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 12

2шт.

14

KHV10430

SHUT-OFF VALVE

ASSY

2шт.

15

KHV10630

COLLAR CLAMP

8шт.

16

166352A1

BOLT

8шт.
