(88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.0M)

Запчасти Case CX250D LC (88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.0M) (88) - ACCESSORIES

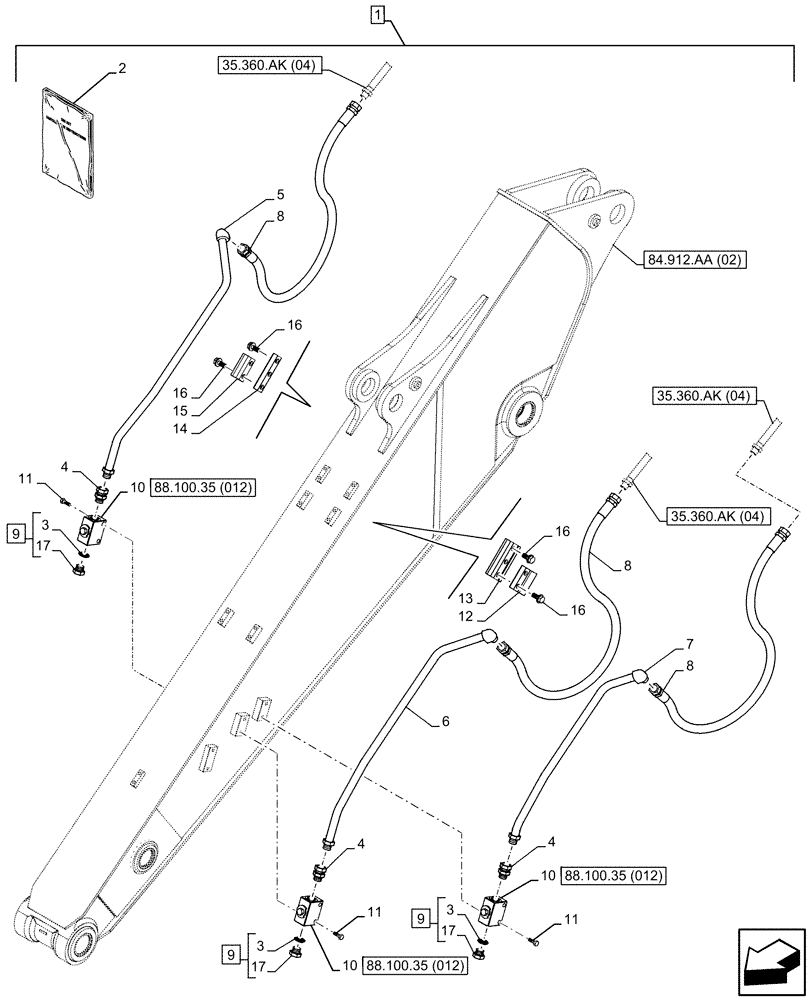

Схема запчастей Case CX250D LC - (88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.0M) (88) - ACCESSORIES
4
10
88.100.35 (012)
10
9
14
88.100.35 (012)
11
17
35.360.ak (04)
17
1
16
2
15
3
16
35.360.ak (04)
84.912.aa (02)
8
11
4
9
8
88.100.35 (012)
9
7
35.360.ak (04)
6
11
4
16
17
3
12
3
16
5
8
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP464-00

CONSTRUCTION DIA

Second Option Line, Standard Arm, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789071

INSTRUCTION

1шт.

2

47789107

INSTRUCTION

1шт.

3

154487A1

O-RING

3шт.

4

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

5

KBV16720

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

6

KBV16710

HYD TUBE,26 mm ID x 34 mm OD

1шт.

7

KBV16730

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

8

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

3шт.

9

159085A1

PLUG

ASSY, Incl 3, 17

3шт.

10

KHV10440

VALVE

ASSY

3шт.

11

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

12

KHV10480

COLLAR CLAMP

2шт.

13

KHV10490

COLLAR CLAMP

2шт.

14

KHV10510

COLLAR CLAMP

2шт.

15

KHV10500

COLLAR CLAMP

2шт.

16

166352A1

BOLT

12шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

3шт.
