(88.100.35[015]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE

Запчасти Case CX250D LC (88.100.35[015]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

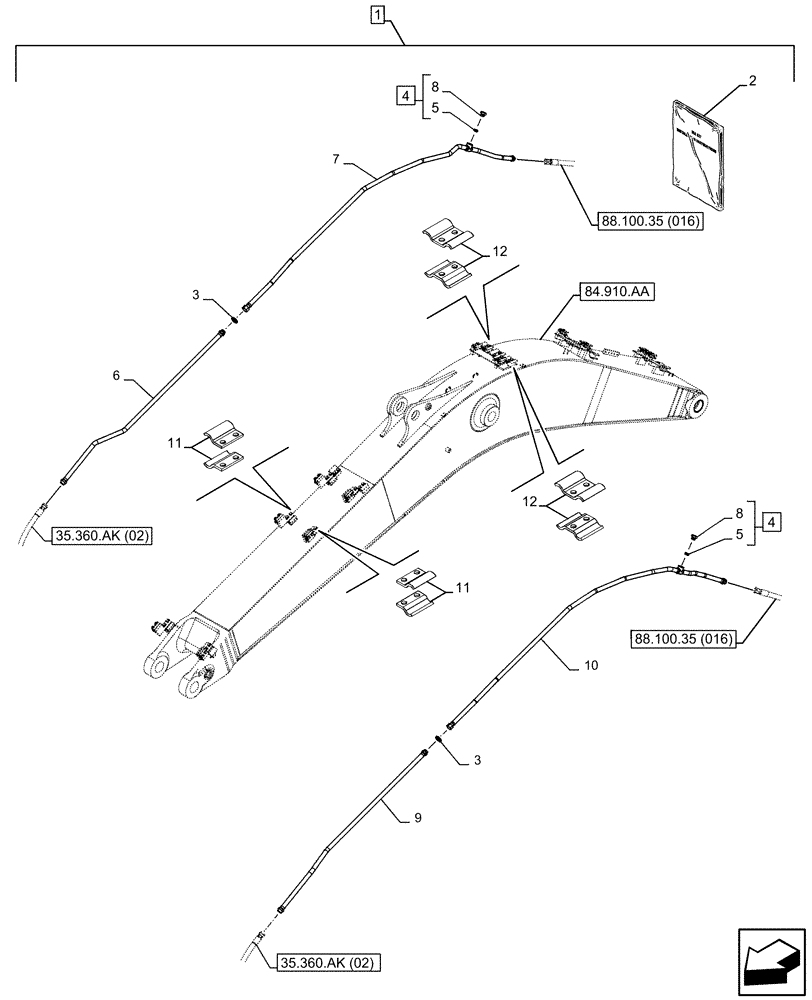

Схема запчастей Case CX250D LC - (88.100.35[015]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES
8
4
7
2
4
35.360.ak (02)
10
5
3
88.100.35 (016)
9
35.360.ak (02)
3
5
11
12
12
11
1
88.100.35 (016)
6
84.910.aa
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP438-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789085

INSTRUCTION

1шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

4

152924A1

PLUG

ASSY, Incl 5, 8

2шт.

5

154503A1

O-RING

2шт.

6

KBV31240

PIPE

Down, RH

1шт.

7

KBV23630

HYD TUBE

Upper, RH

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

2шт.

9

KBV31230

PIPE

Down, LH

1шт.

10

KBV23610

HYD TUBE

Upper, LH

1шт.

11

KHV10630

COLLAR CLAMP

4шт.

12

KHV10610

COLLAR CLAMP

4шт.
