(88.100.35[026]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE, PLUG

Запчасти Case CX250D LC (88.100.35[026]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES

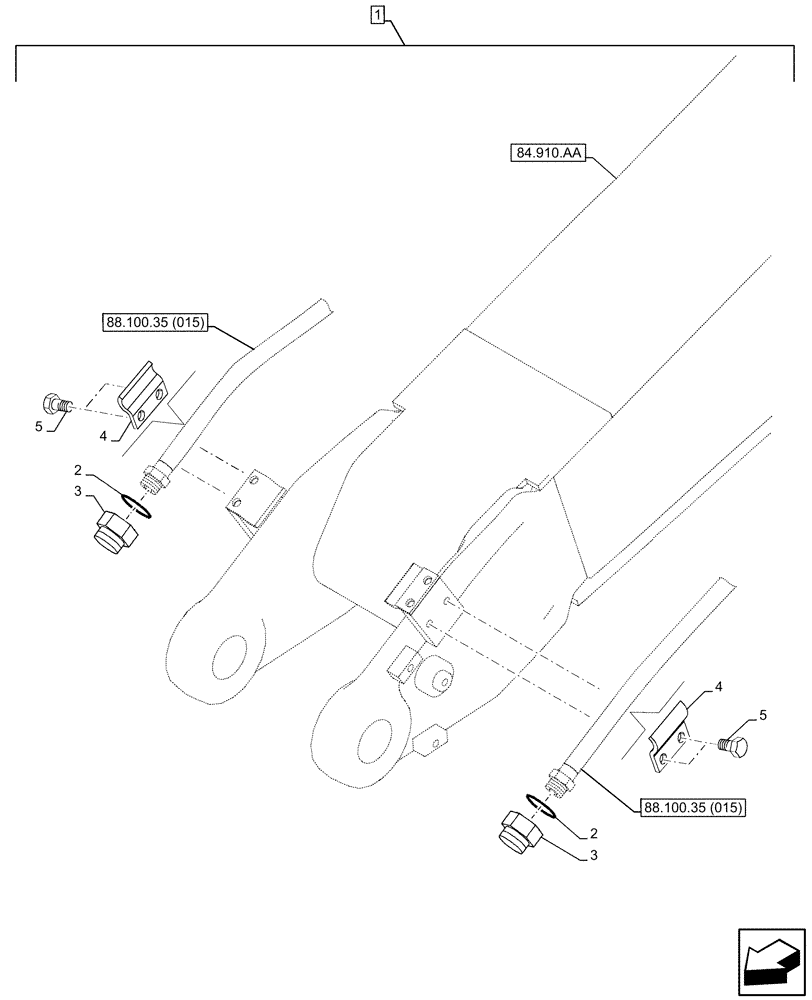

Схема запчастей Case CX250D LC - (88.100.35[026]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES
5
4
88.100.35 (015)
3
3
2
1
84.910.aa
88.100.35 (015)
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP438-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

3

KHJ1899

PLUG

2шт.

4

KHV10640

COLLAR CLAMP

2шт.

5

166352A1

BOLT

4шт.
