(88.100.35[073]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX250D LC (88.100.35[073]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

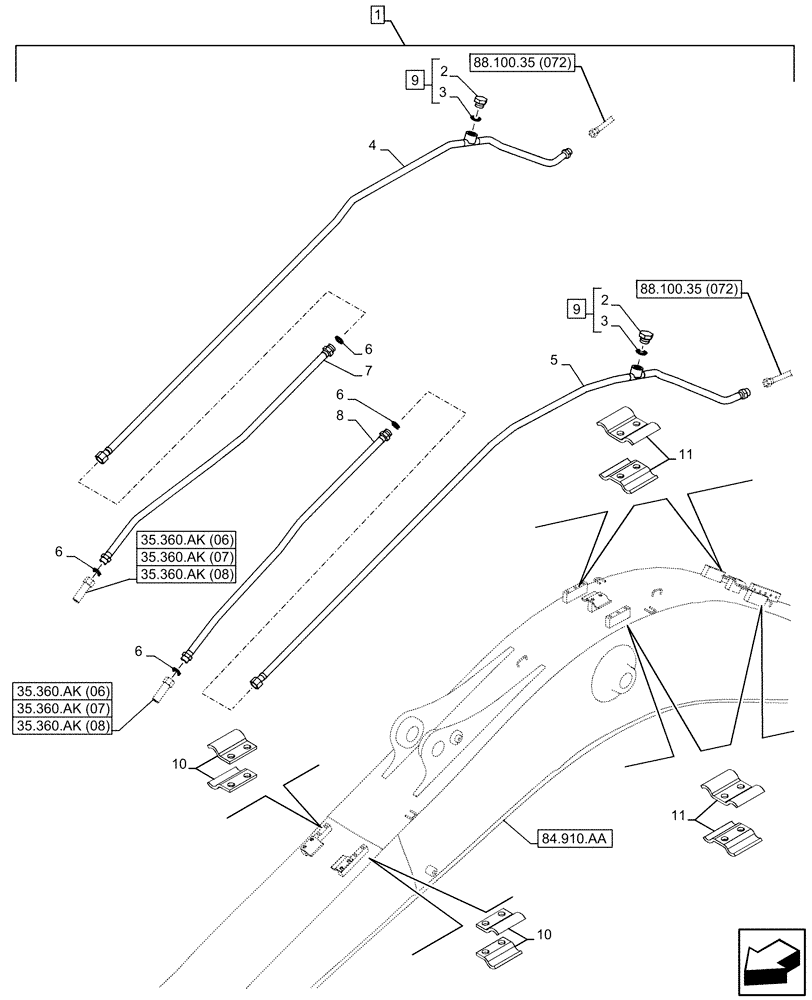

Схема запчастей Case CX250D LC - (88.100.35[073]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
3
35.360.ak (08)
5
6
8
2
88.100.35 (072)
3
9
9
2
35.360.ak (07)
10
11
35.360.ak (08)
88.100.35 (072)
35.360.ak (06)
6
7
10
1
35.360.ak (06)
4
84.910.aa
6
35.360.ak (07)
6
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP447-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

2шт.

3

150542A1

O-RING

2шт.

4

KBV23630

HYD TUBE

Upper, RH

1шт.

5

KBV23610

HYD TUBE

Upper, LH

1шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

7

KBV31240

PIPE

Down, RH

1шт.

8

KBV31230

PIPE

Down, LH

1шт.

9

152924A1

PLUG

ASSY, G3/4", Incl 2, 3

2шт.

10

KHV10630

COLLAR CLAMP

4шт.

11

KHV10610

COLLAR CLAMP

8шт.
