(88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG

Запчасти Case CX250D LC (88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES

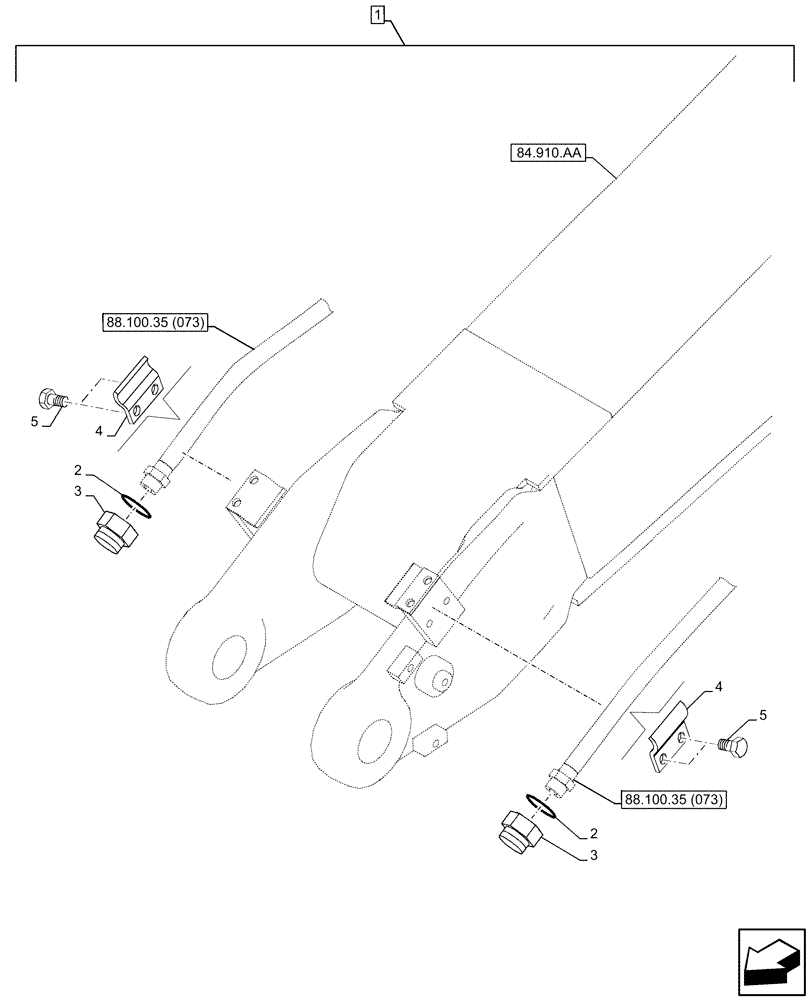

Схема запчастей Case CX250D LC - (88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES
2
88.100.35 (073)
3
84.910.aa
4
88.100.35 (073)
5
4
3
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP447-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KHJ1898

PLUG

2шт.

4

KHV10640

COLLAR CLAMP

2шт.

5

166352A1

BOLT

M12 x 30mm

4шт.
