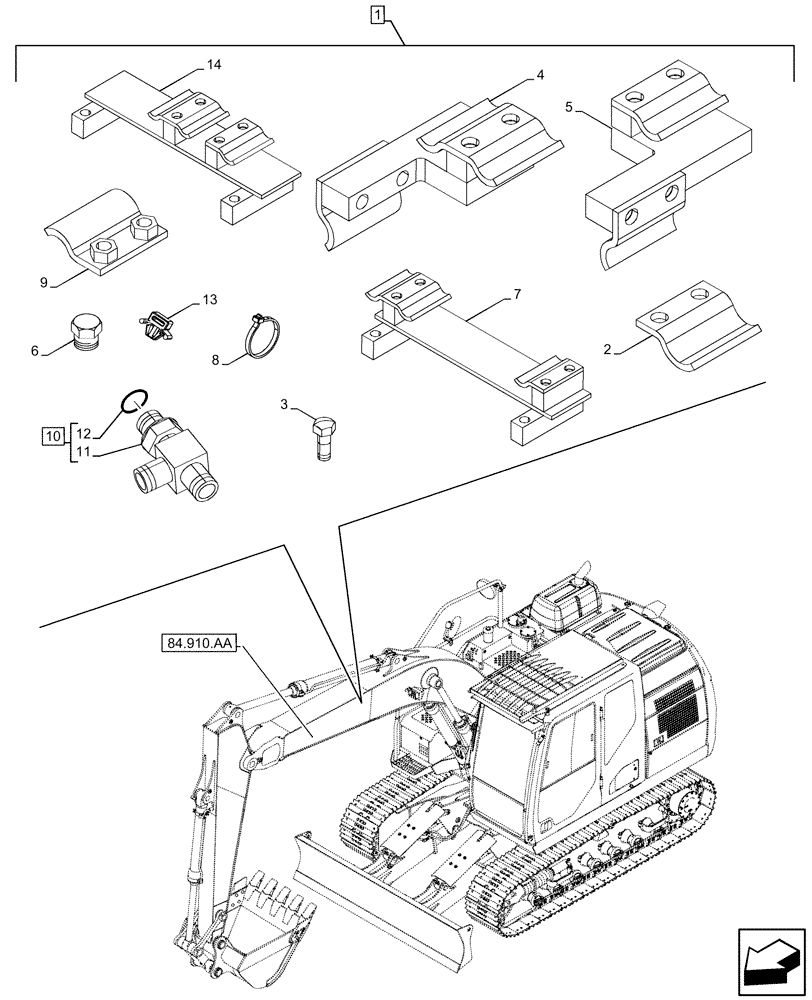

Запчасти Case CX250D LC (88.100.35[103]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, CLAMP, PLUG, TEE (88) - ACCESSORIES

1

KG1BP451-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHV10500

COLLAR CLAMP

6шт.

2

KHV10480

COLLAR CLAMP

6шт.

3

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

18шт.

3

166352A1

BOLT

16шт.

3

166052A1

BOLT

M10 x 25mm

2шт.

4

KNV13810

BAR

3шт.

5

KNV13820

BAR

3шт.

6

158841A1

PLUG

3шт.

7

KRV20300

BAR

2шт.

8

150498A1

MOUNTING CLIP

297mm

8шт.

8

150496A1

MOUNTING CLIP

250mm

10шт.

9

KHV11640

PIPE CLAMP

2шт.

10

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 11, 12

2шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

KHR10220

MOUNTING CLIP

1шт.

14

KRV20290

BAR

1шт.
