(88.100.35[150]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX250D LC (88.100.35[150]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

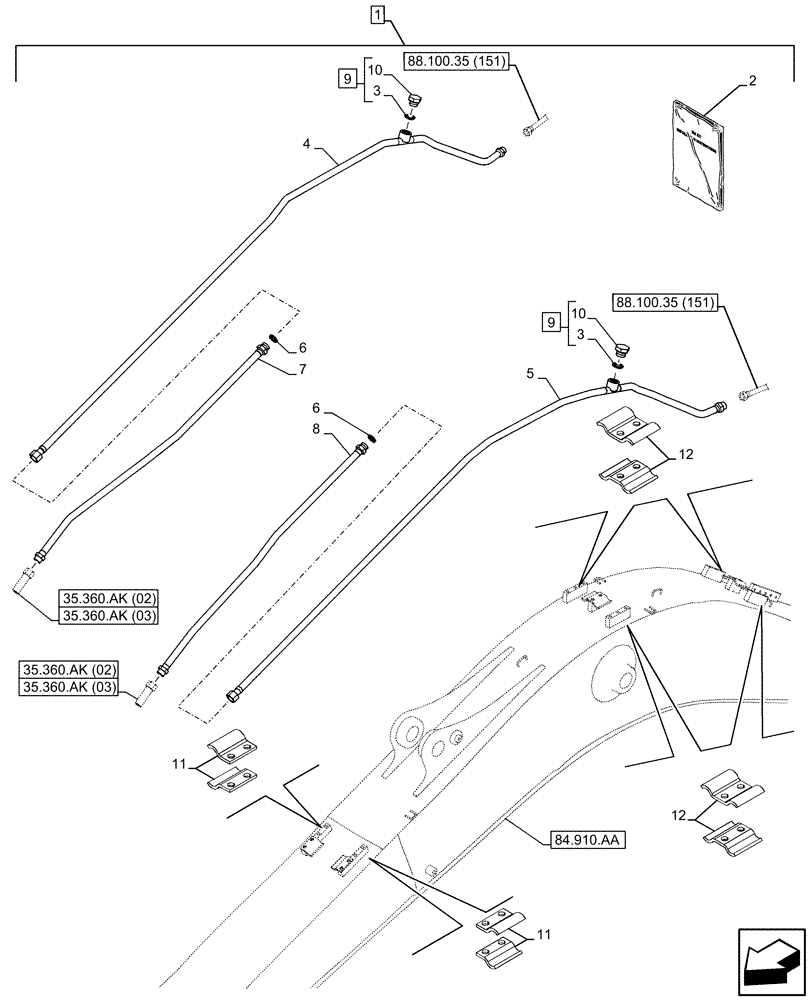

Схема запчастей Case CX250D LC - (88.100.35[150]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
11
3
3
4
88.100.35 (151)
35.360.ak (03)
35.360.ak (02)
5
7
6
9
88.100.35 (151)
11
12
10
12
1
6
35.360.ak (03)
10
9
8
2
84.910.aa
35.360.ak (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP445-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789054

INSTRUCTION

1шт.

2

47789091

INSTRUCTION

1шт.

3

154503A1

O-RING

2шт.

4

KBV23630

HYD TUBE

1шт.

5

KBV23610

HYD TUBE

1шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

7

KBV31240

PIPE

1шт.

8

KBV31230

PIPE

1шт.

9

152924A1

PLUG

ASSY, Incl 3, 10

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

2шт.

11

KHV10630

COLLAR CLAMP

4шт.

12

KHV10610

COLLAR CLAMP

8шт.
