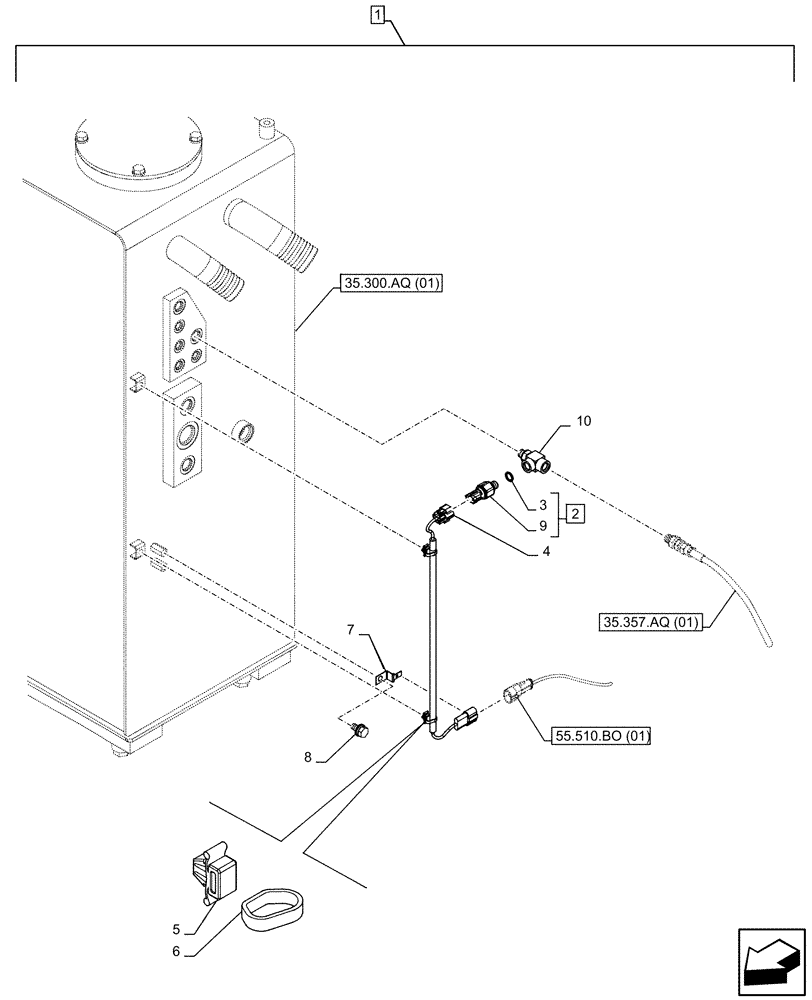

Запчасти Case CX250D LC (88.100.35[169]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE SWITCH (88) - ACCESSORIES

1

KG1BP445-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR32870

SENSOR

ASSY, Pressure, 1MPa, Incl 3, 9

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

KHR33420

WIRE HARNESS

1шт.

5

KHR10220

MOUNTING CLIP

2шт.

6

150496A1

MOUNTING CLIP

2шт.

7

158962A1

CLIP

1шт.

8

167518A1

BOLT

1шт.

9

NSS

NOT SOLD SEPARAT

Sensor, Incl in 2

1шт.

10

KHJ12530

TEE

G1/4"

1шт.
