(88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX250D LC (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

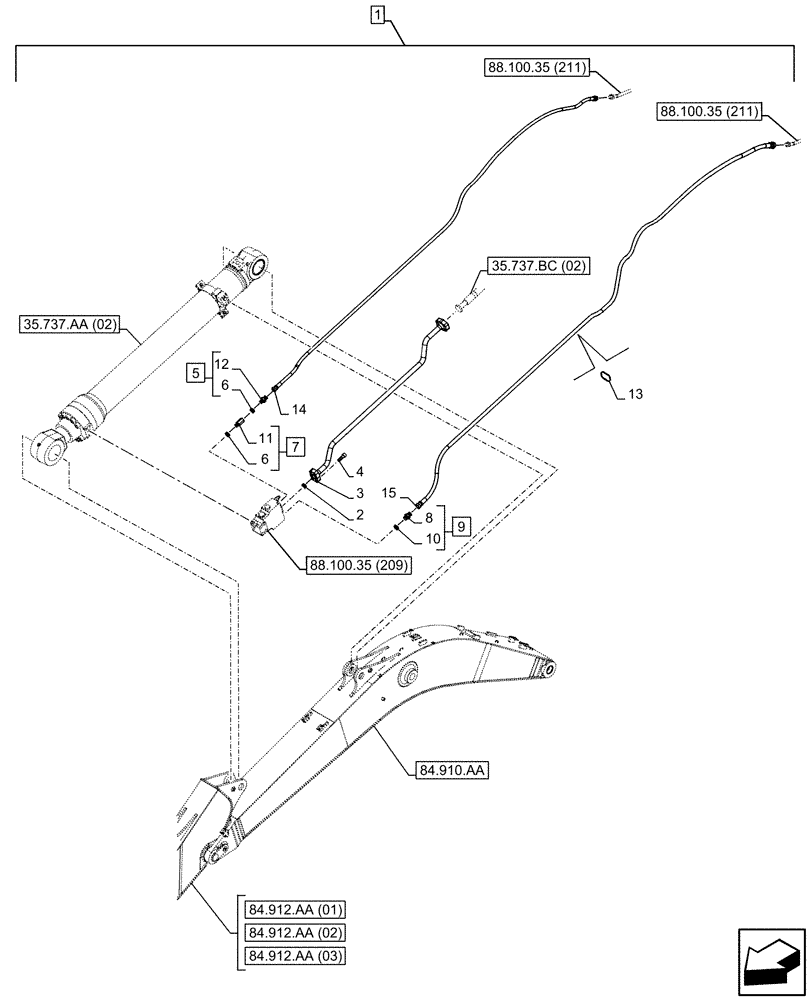

Схема запчастей Case CX250D LC - (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
4
2
9
84.912.aa (03)
11
35.737.bc (02)
10
5
7
3
12
35.737.aa (02)
8
15
1
88.100.35 (211)
84.912.aa (02)
84.910.aa
13
14
88.100.35 (211)
88.100.35 (209)
6
6
84.912.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP453-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

155211A1

O-RING

1шт.

3

KBV34140

PIPE

1шт.

4

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

5

152747A1

ADAPTER

ASSY, Incl 6 (Qty 1), 12

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

162525A1

STUD

ASSY, Incl 6 (Qty 1), 11

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 8, 10

1шт.

10

154475A1

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

13

150496A1

MOUNTING CLIP

8шт.

14

KHJ1865

HYDRAULIC HOSE

2800mm

1шт.

15

KHJ17480

HYDRAULIC HOSE

2900mm

1шт.
