(88.100.55[10]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT

Запчасти Case CX250D LC (88.100.55[10]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES

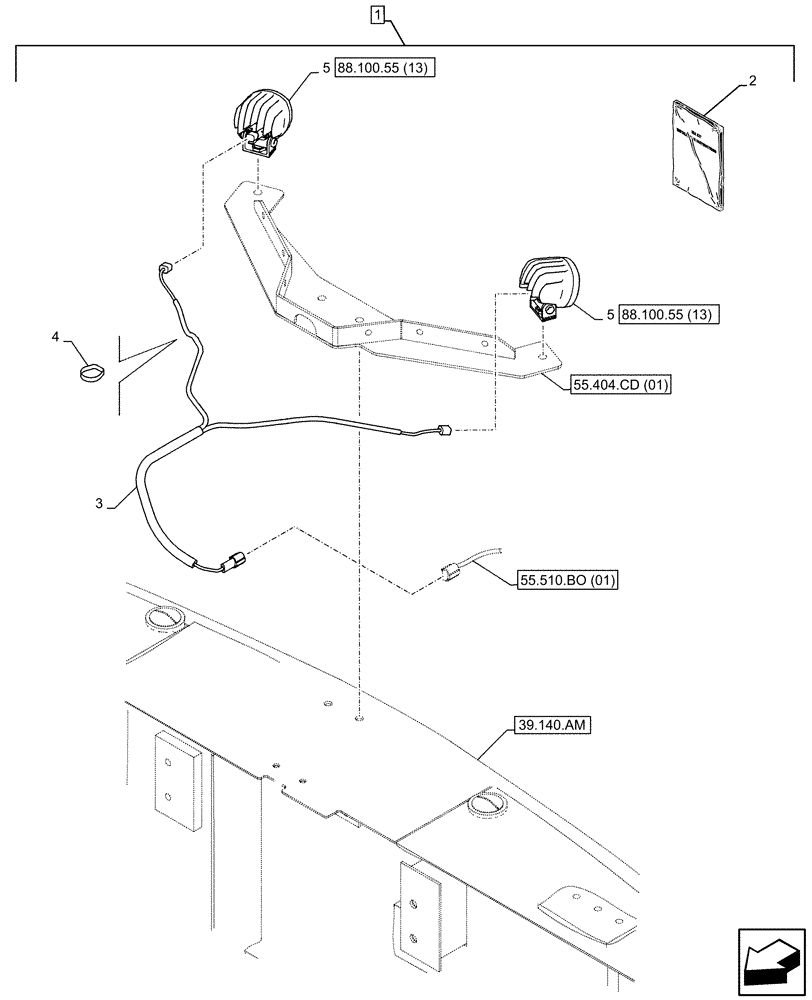

Схема запчастей Case CX250D LC - (88.100.55[10]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
4
3
88.100.55 (13)
5
55.510.bo (01)
88.100.55 (13)
2
5
55.404.cd (01)
1
39.140.am
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0BR373-00

CONSTRUCTION DIA

Right, Left, Rear Camera View, Light, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47844405

INSTRUCTION

1шт.

2

47929341

INSTRUCTION

1шт.

2

47928791

INSTRUCTION

1шт.

3

KBR13961

WIRE HARNESS

1шт.

4

150496A1

MOUNTING CLIP

250mm

7шт.

5

KHR37950

WORK LAMP

ASSY

2шт.
