(88.100.55[11]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT

Запчасти Case CX250D LC (88.100.55[11]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES

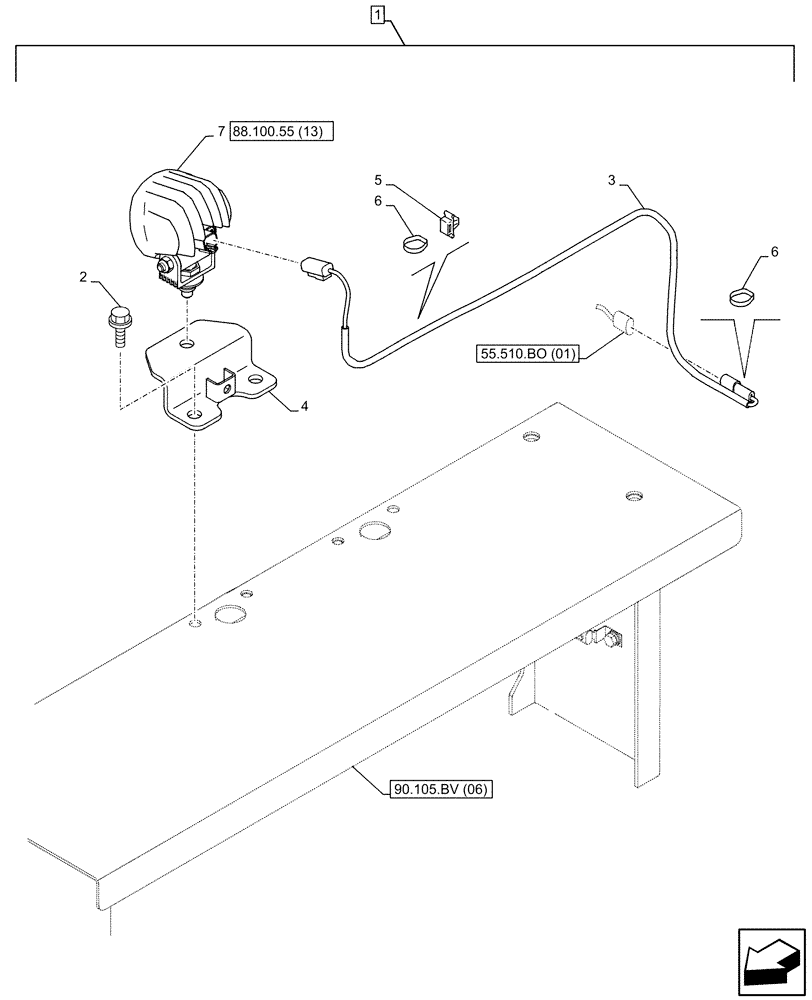

Схема запчастей Case CX250D LC - (88.100.55[11]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
3
7
4
6
2
5
55.510.bo (01)
6
88.100.55 (13)
1
90.105.bv (06)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0BR373-00

CONSTRUCTION DIA

Right, Left, Rear Camera View, Light, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30mm

2шт.

3

KHR41840

WIRE HARNESS

1шт.

4

KHR41830

BRACKET

1шт.

5

KHR10220

MOUNTING CLIP

2шт.

6

150496A1

MOUNTING CLIP

250mm

3шт.

7

KHR37950

WORK LAMP

ASSY

1шт.
