(88.100.84[03]) - DIA KIT, REINFORCEMENT, ARM (L=3M), STANDARD

Запчасти Case CX250D LC (88.100.84[03]) - DIA KIT, REINFORCEMENT, ARM (L=3M), STANDARD (88) - ACCESSORIES

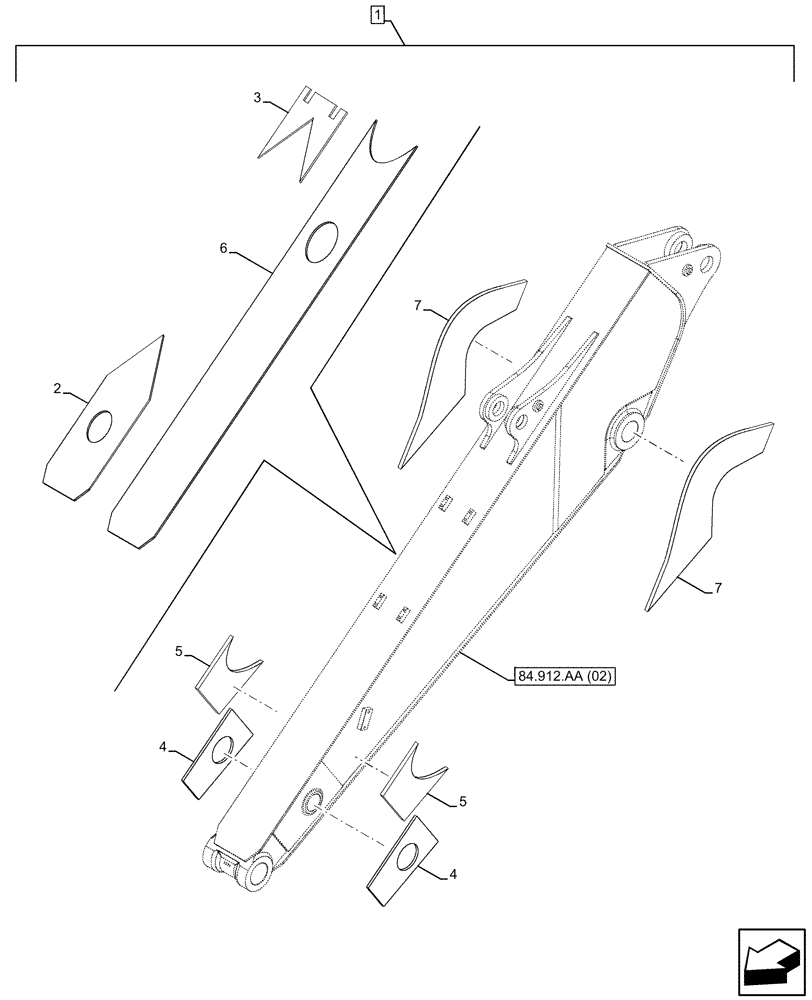

Схема запчастей Case CX250D LC - (88.100.84[03]) - DIA KIT, REINFORCEMENT, ARM (L=3M), STANDARD (88) - ACCESSORIES
7
5
7
4
6
1
5
2
4
3
84.912.aa (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP459-00

CONSTRUCTION DIA

Standard Arm Reinforcement, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBV34530

PLATE

1шт.

3

KBP17170

PLATE

1шт.

4

KBP11170

PLATE

2шт.

5

KBP11180

PLATE

2шт.

6

KBV24540

PLATE

1шт.

7

KBP17190

PLATE

2шт.
