(88.100.84[05]) - DIA KIT, REINFORCEMENT, LONG EXCAVATOR ARM (L=3.5M)

Запчасти Case CX250D LC (88.100.84[05]) - DIA KIT, REINFORCEMENT, LONG EXCAVATOR ARM (L=3.5M) (88) - ACCESSORIES

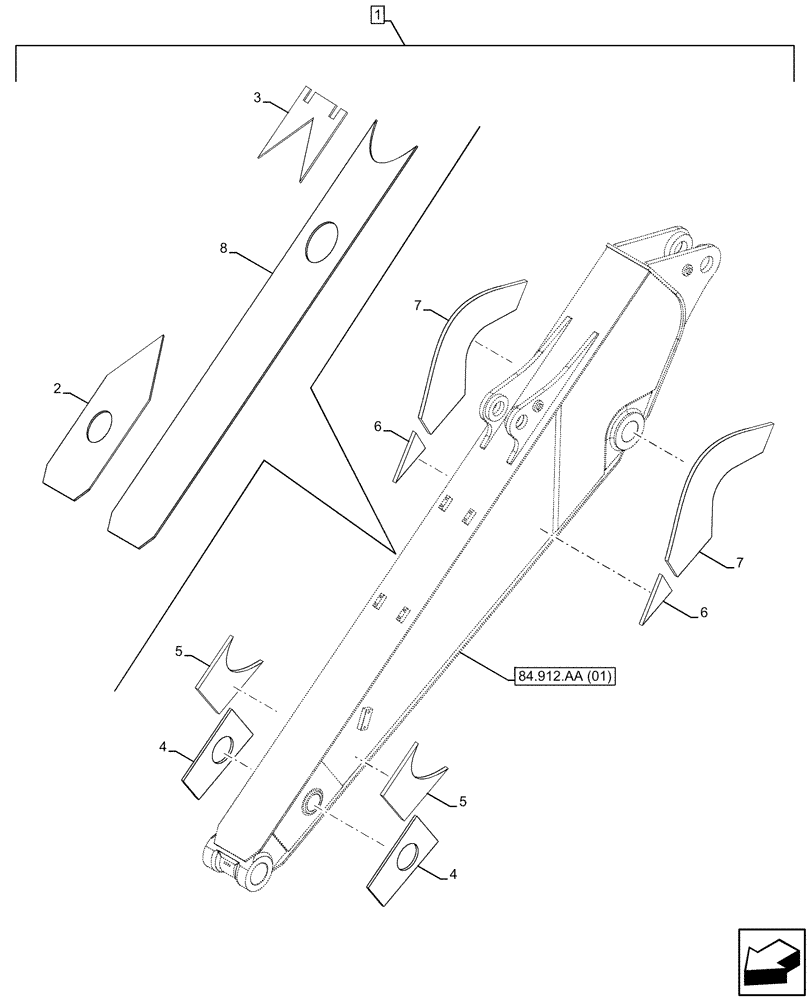

Схема запчастей Case CX250D LC - (88.100.84[05]) - DIA KIT, REINFORCEMENT, LONG EXCAVATOR ARM (L=3.5M) (88) - ACCESSORIES
4
5
6
5
8
4
1
3
2
7
7
6
84.912.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP460-00

CONSTRUCTION DIA

Long Arm Reinforcement, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBV34530

PLATE

1шт.

3

KBV34470

PLATE

1шт.

4

KBP11170

PLATE

2шт.

5

KBP11180

PLATE

2шт.

6

KBP11190

PLATE

2шт.

7

KBV34480

PLATE

2шт.

8

KBV24540

PLATE

1шт.
