(35.355.AC[03]) - STD + VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX250D LC LR (35.355.AC[03]) - STD + VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

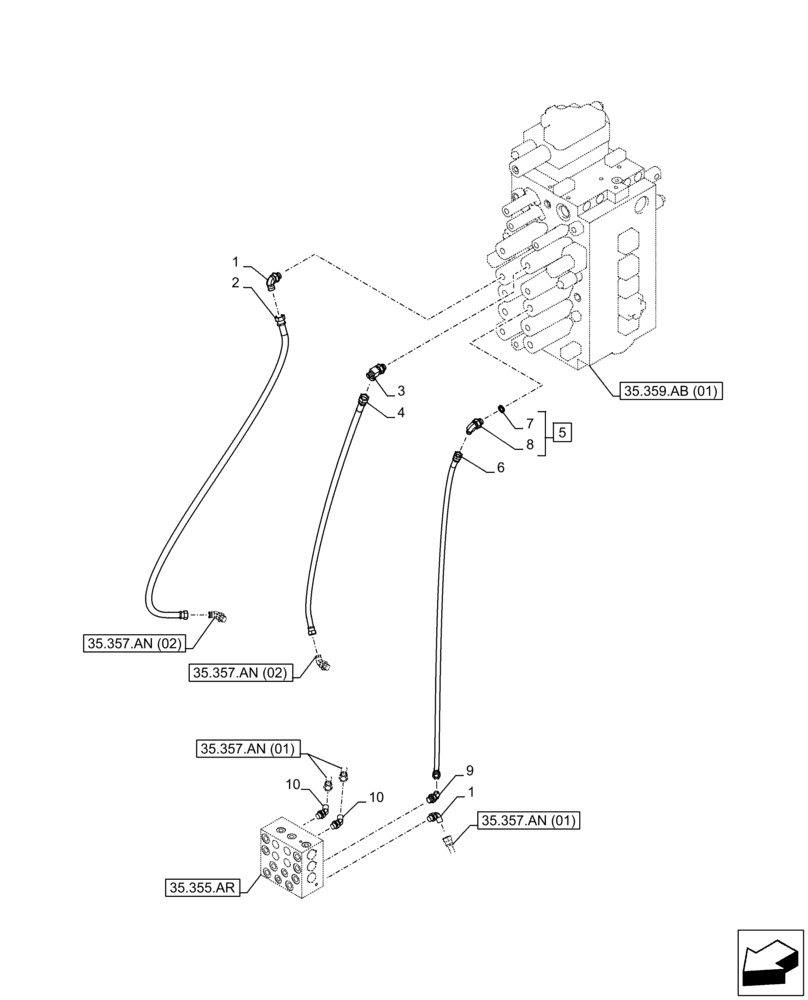

Схема запчастей Case CX250D LC LR - (35.355.AC[03]) - STD + VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
10
6
7
1
1
8
2
9
35.357.an (01)
35.355.ar
35.357.an (02)
35.357.an (01)
5
3
4
10
35.357.an (02)
35.359.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28590

ELBOW

G3/8 x G3/8, Start Serial: D0078

2шт.

2

KHJ2010

HOSE

9mm ID x 1450mm

2шт.

3

KHJ13900

TEE

G3/8" x G1/4" x G3/8", Start Serial: D0078

1шт.

4

KHJ2100

FLEXIBLE HOSE

9mm ID x 1500mm

1шт.

5

KHJ28690

ELBOW

ASSY, G3/8" x G1/4", Incl 7, 8, Start Serial: D0078

2шт.

6

KHJ2057

HOSE

6mm ID x 1450mm

1шт.

7

150031A1

O-RING,10mm ID x 24mm OD

1шт.

8

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 5

1шт.

9

KHJ28730

ELBOW

G3/8 x G1/4, Start Serial: D0078

1шт.

10

KHJ28640

ELBOW

G3/8 x G3/8, Start Serial: D0078

2шт.
