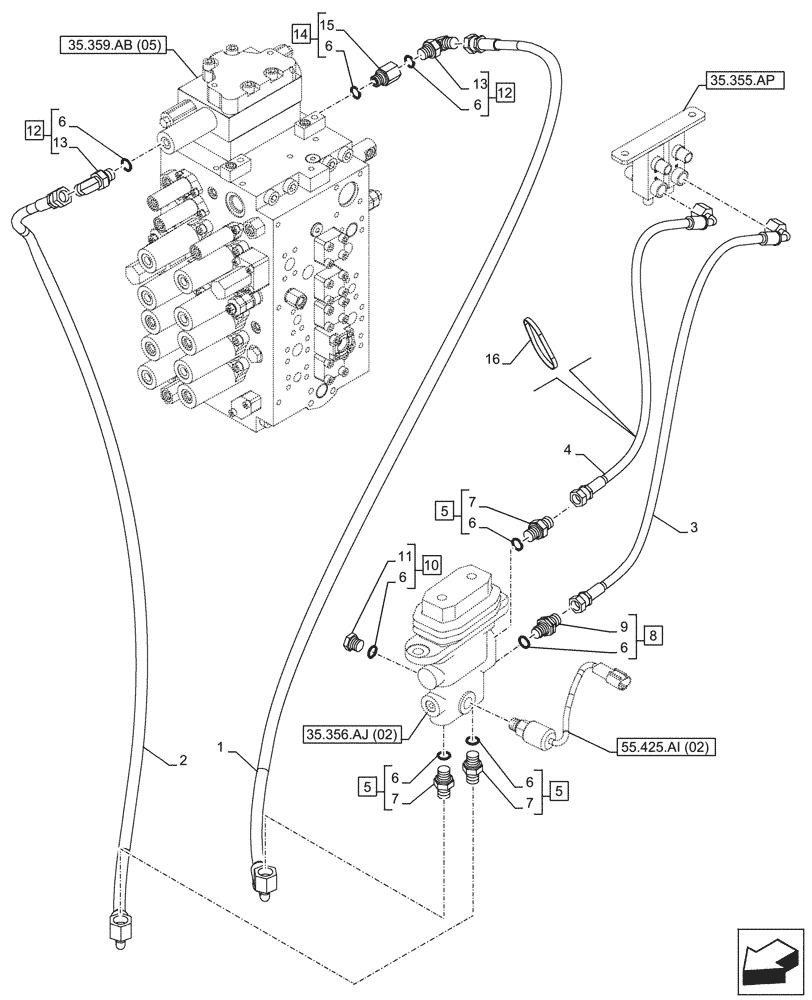

Запчасти Case CX250D LC LR (35.360.AF[03]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ17840

HOSE

6mm ID x 3700mm

1шт.

2

KHJ16300

HOSE

6mm ID x 3650mm

1шт.

3

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

6mm ID x 900mm

1шт.

4

KHJ2088

HOSE

6mm ID x 850mm

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6 (Qty 1), 7

3шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

3шт.

8

161841A1

HYD CONNECTOR

ASSY, Incl 6 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

159002A1

PLUG

ASSY, Incl 6(Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

1шт.

12

KHJ28580

ELBOW

ASSY, Incl 6(Qty 1), 13

2шт.

13

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 12

2шт.

14

KHJ13640

STUD

ASSY, Incl 6(Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.

16

150496A1

MOUNTING CLIP

250mm

4шт.
