(35.360.AK[03]) - VAR - 461872 - ARM, LINE, HAMMER, SHEARS, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC LR (35.360.AK[03]) - VAR - 461872 - ARM, LINE, HAMMER, SHEARS, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

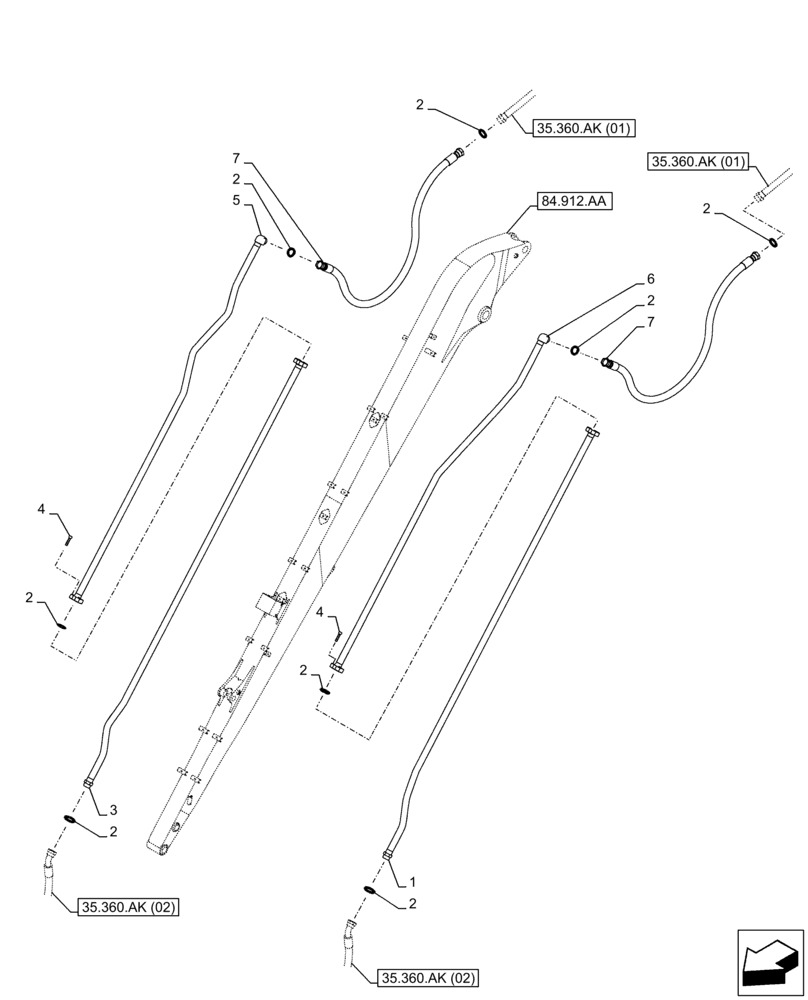

Схема запчастей Case CX250D LC LR - (35.360.AK[03]) - VAR - 461872 - ARM, LINE, HAMMER, SHEARS, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
2
2
2
7
84.912.aa
2
2
5
7
3
2
4
35.360.ak (02)
35.360.ak (01)
4
35.360.ak (02)
6
35.360.ak (01)
2
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV17020

HYD TUBE

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

3

KBV17030

HYD TUBE

1шт.

4

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

5

KBV17010

HYD TUBE

1шт.

6

KBV17000

HYD TUBE

1шт.

7

KBV17160

HYDRAULIC HOSE

2шт.
