(35.737.AE[02]) - VAR - 481064 - ARM, CYLINDER, LINES

Запчасти Case CX250D LC LR (35.737.AE[02]) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

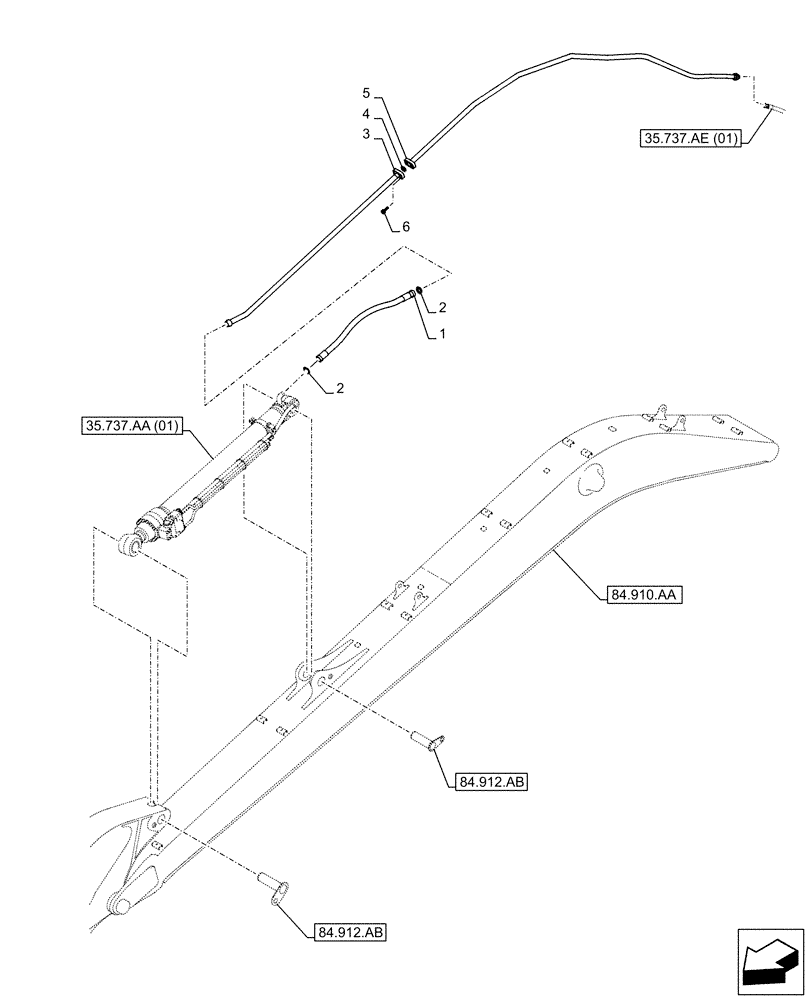

Схема запчастей Case CX250D LC LR - (35.737.AE[02]) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.912.ab
2
35.737.ae (01)
3
4
84.912.ab
6
5
2
35.737.aa (01)
1
84.910.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV35020

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

3

KRV2894

HYD TUBE,26 mm ID x 34 mm OD

1шт.

4

152683A1

O-RING

1шт.

5

KBV16950

HYD TUBE

1шт.

6

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.
