(35.737.AE[04]) - VAR - 481238 - ARM, CYLINDER, LINES

Запчасти Case CX250D LC LR (35.737.AE[04]) - VAR - 481238 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

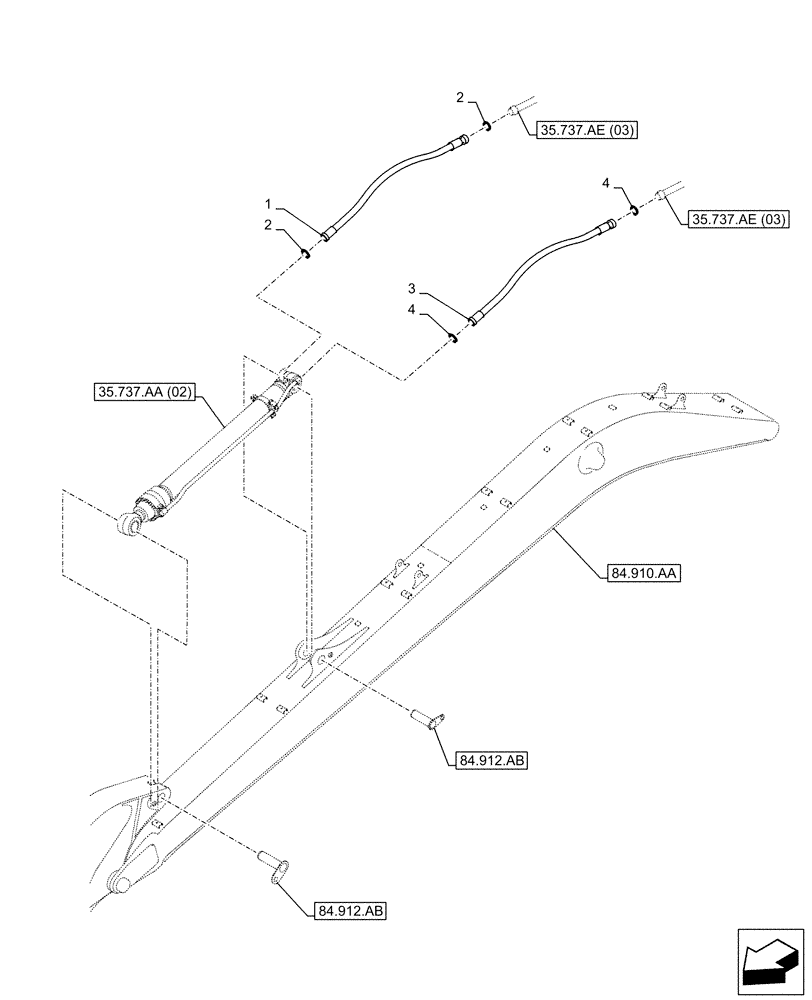

Схема запчастей Case CX250D LC LR - (35.737.AE[04]) - VAR - 481238 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.737.ae (03)
84.912.ab
84.910.aa
35.737.ae (03)
1
84.912.ab
2
2
4
3
35.737.aa (02)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV35020

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

3

KRV12781

HYDRAULIC HOSE

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.
