(35.737.BC[02]) - ARM, CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX250D LC LR (35.737.BC[02]) - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

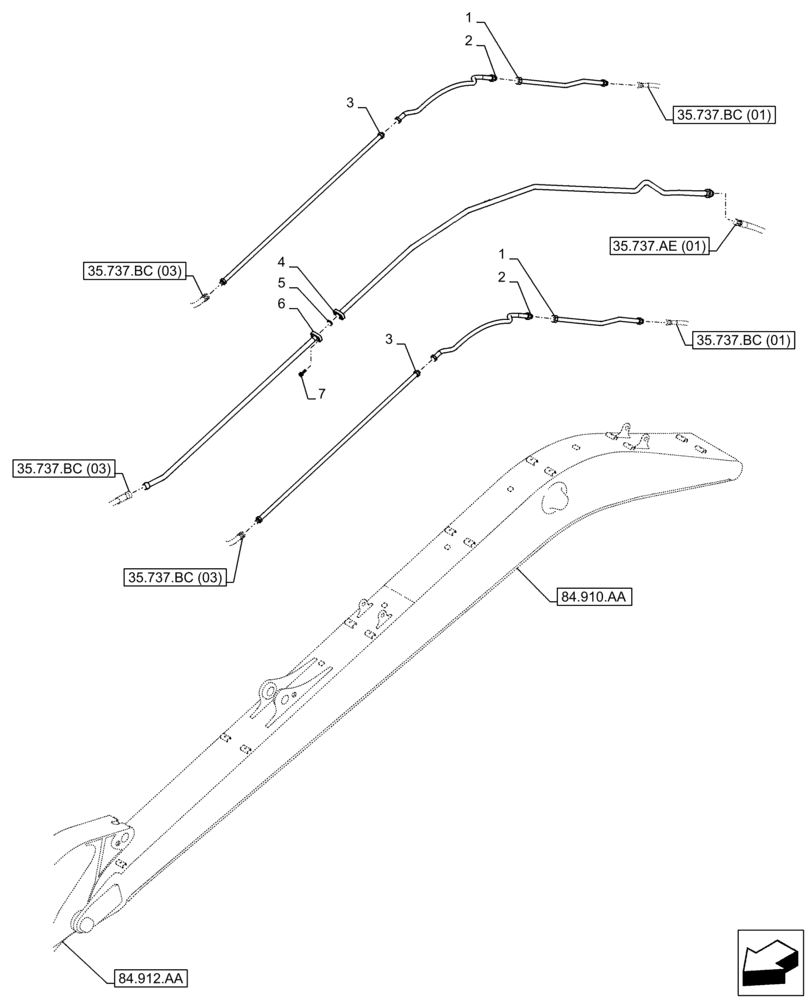

Схема запчастей Case CX250D LC LR - (35.737.BC[02]) - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.737.bc (01)
2
35.737.bc (03)
84.910.aa
35.737.bc (01)
6
2
7
35.737.bc (03)
35.737.ae (01)
84.912.aa
1
35.737.bc (03)
4
3
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV17060

HYD TUBE

2шт.

2

KHJ1694

HYDRAULIC HOSE

2шт.

3

KBV17070

HYD TUBE

2шт.

4

KBV26400

PIPE

1шт.

5

151099A1

O-RING

1шт.

6

KRV2895

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

7

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.
