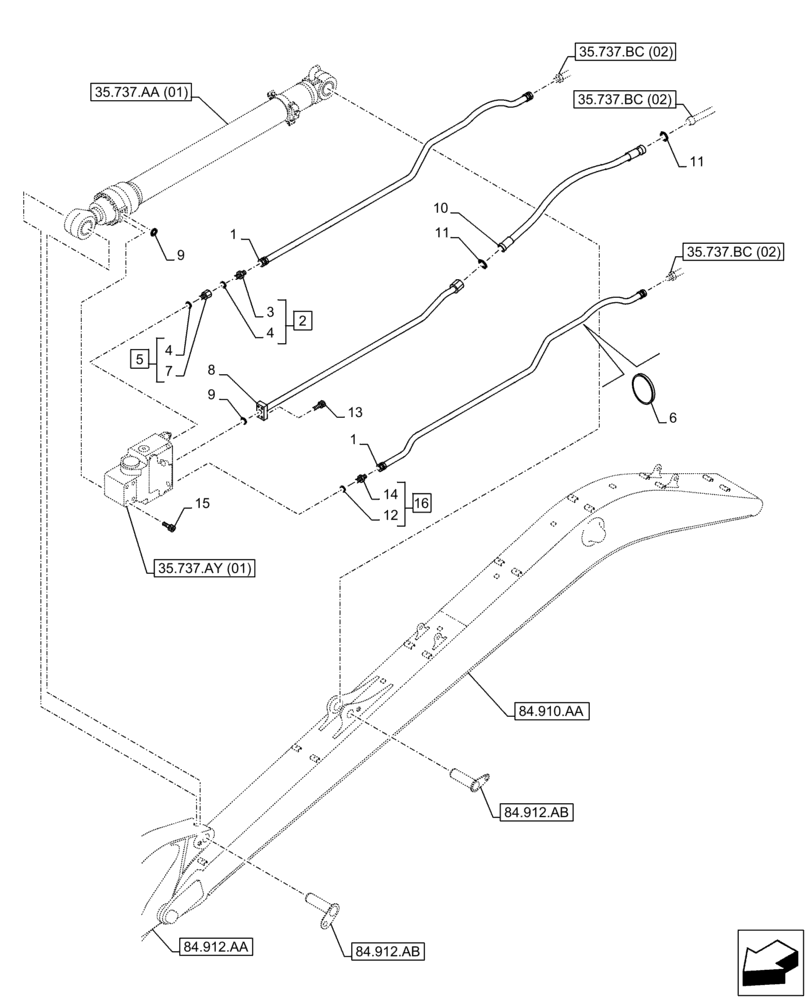

Запчасти Case CX250D LC LR (35.737.BC[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

168852A1

HYDRAULIC HOSE,3100.00 mm

2шт.

2

152747A1

ADAPTER

ASSY, Incl 3, 4 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

162525A1

STUD

ASSY, Incl 7, 4 (Qty 1)

1шт.

6

150067A1

MOUNTING CLIP

12шт.

7

NSS

NOT SOLD SEPARAT

Stud, Incl in 5

1шт.

8

KBV18380

HYD TUBE

1шт.

9

162246A1

O-RING

2шт.

10

KRV12781

HYDRAULIC HOSE

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

12

150031A1

O-RING,10mm ID x 24mm OD

1шт.

13

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 16

1шт.

15

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 12, 14

1шт.
