(88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE

Запчасти Case CX250D LC LR (88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE (88) - ACCESSORIES

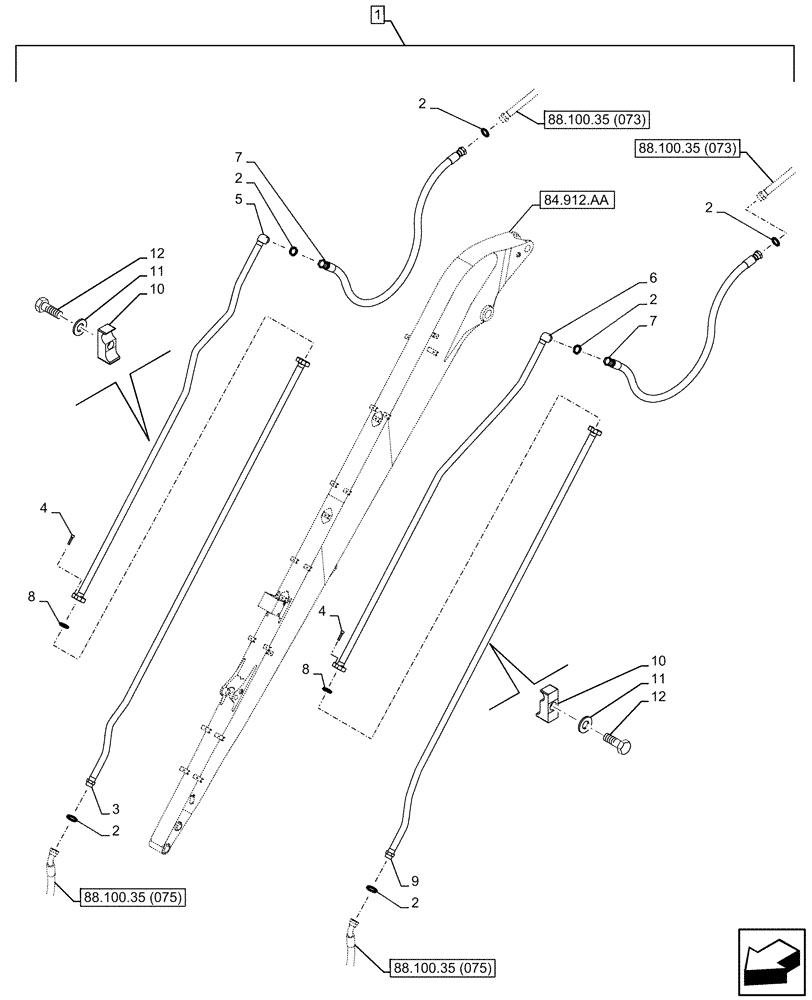

Схема запчастей Case CX250D LC LR - (88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE (88) - ACCESSORIES
9
8
7
12
5
2
6
2
12
11
2
7
88.100.35 (073)
10
11
88.100.35 (075)
8
84.912.aa
10
88.100.35 (075)
4
1
2
2
4
3
2
88.100.35 (073)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP604-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

3

KBV17030

HYD TUBE

RH

1шт.

4

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

5

KBV17010

HYD TUBE

1шт.

6

KBV17000

HYD TUBE

1шт.

7

KBV17160

HYDRAULIC HOSE

2шт.

8

154548A1

O-RING

2шт.

9

KBV17020

HYD TUBE

LH

1шт.

10

150777A1

COLLAR

14шт.

11

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

14шт.

12

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

14шт.
