(88.100.35[094]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE, STOP, VALVE

Запчасти Case CX250D LC LR (88.100.35[094]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE, STOP, VALVE (88) - ACCESSORIES

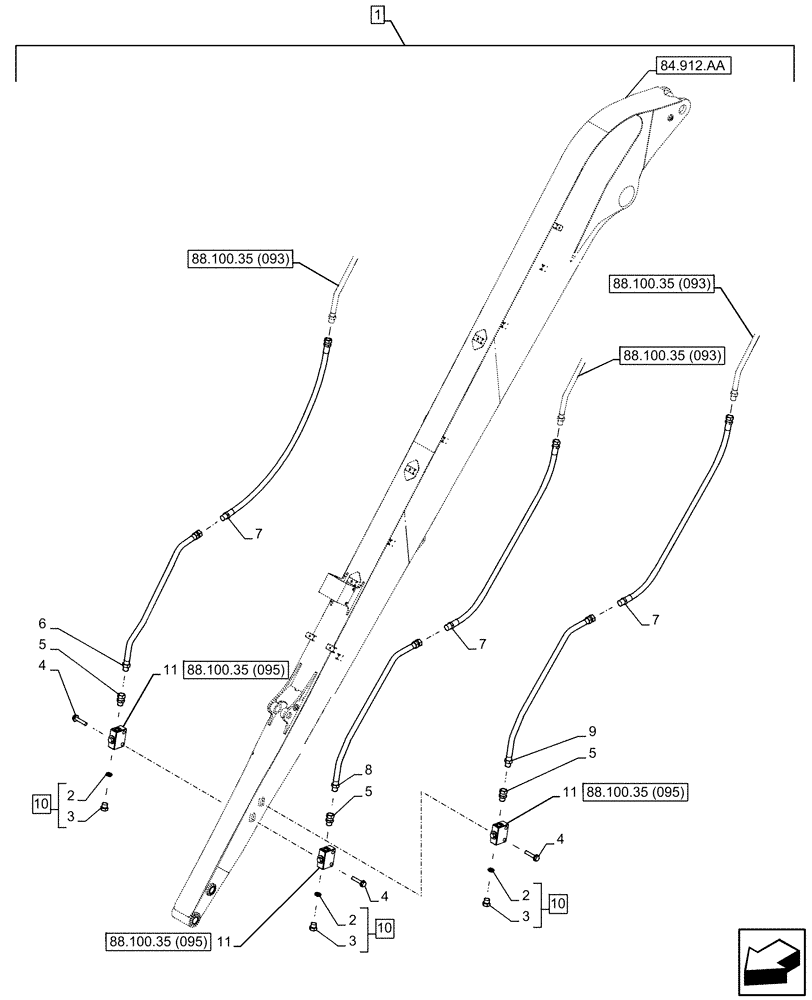

Схема запчастей Case CX250D LC LR - (88.100.35[094]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE, STOP, VALVE (88) - ACCESSORIES
3
11
5
8
7
88.100.35 (093)
6
10
4
88.100.35 (095)
3
2
3
10
84.912.aa
11
7
9
2
88.100.35 (095)
4
5
11
7
10
4
2
88.100.35 (095)
5
88.100.35 (093)
1
88.100.35 (093)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP606-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150539A1

O-RING

3шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12 x 60mm

6шт.

5

KHJ1939

FITTING

3шт.

6

KBV37970

PIPE

RH

1шт.

7

KRV43980

HYDRAULIC HOSE

12mm ID x 1000mm

3шт.

8

KBV37950

PIPE

LH, Front

1шт.

9

KBV37940

PIPE

LH, Rear

1шт.

10

159085A1

PLUG

ASSY, G1/2", Incl 2, 3

3шт.

11

KHV10440

VALVE

ASSY

3шт.
