(88.100.35[101]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, DECAL, CONTROLS

Запчасти Case CX250D LC LR (88.100.35[101]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, DECAL, CONTROLS (88) - ACCESSORIES

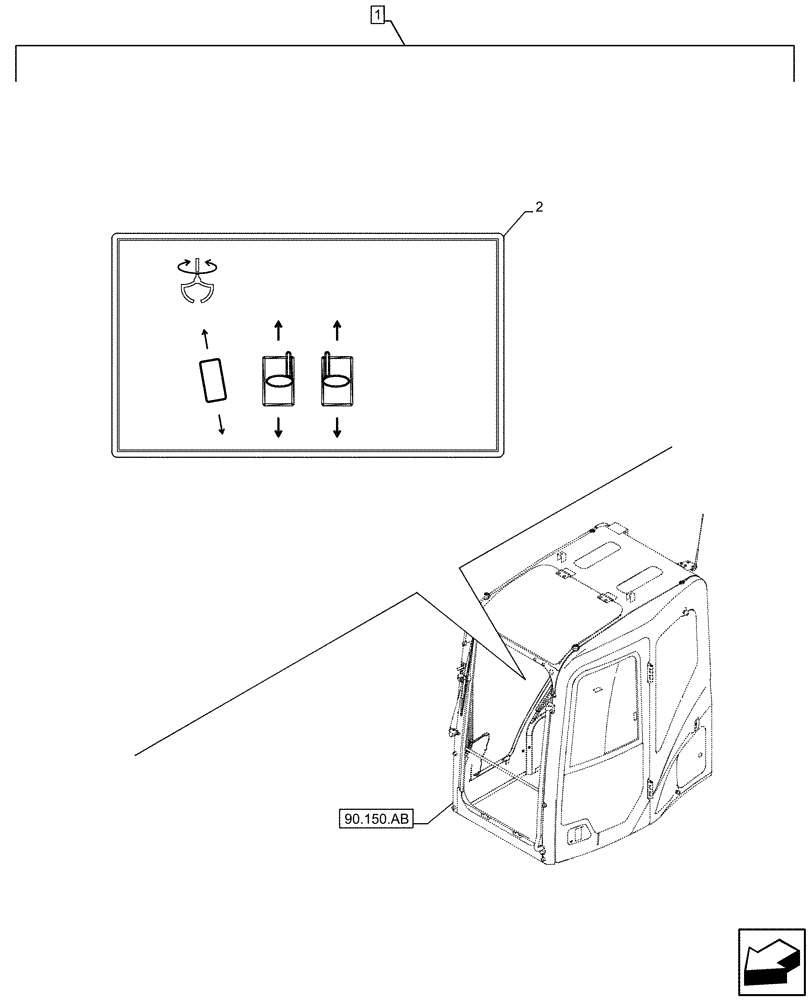

Схема запчастей Case CX250D LC LR - (88.100.35[101]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, DECAL, CONTROLS (88) - ACCESSORIES
90.150.ab
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP607-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHP29200

DECAL

1шт.

Выбрано товаров: 3
